FTTx IP67 Multiport Service Terminal MST With Drop Cable

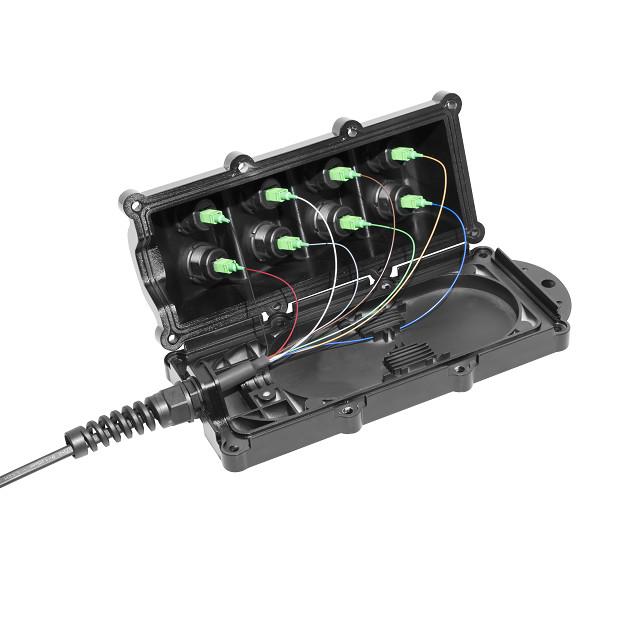

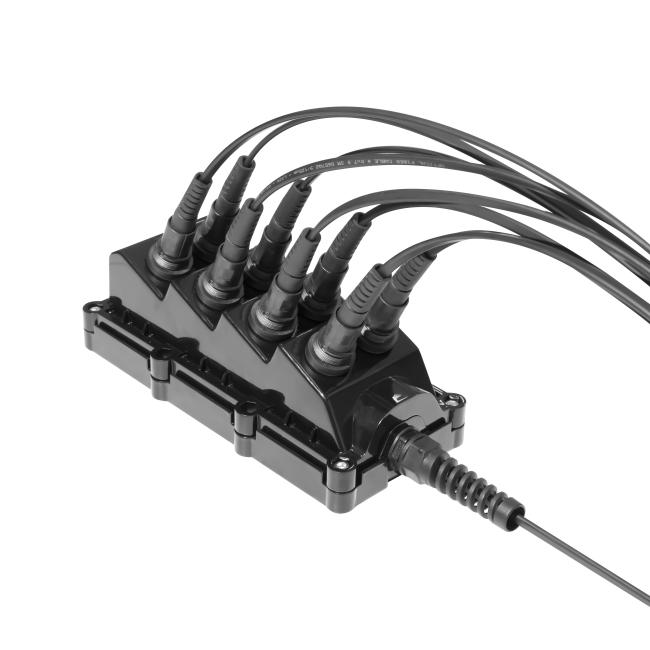

FTTx Outside Plant IP67 Multiport Service Terminal (MST) Always Come as 4/8/12 Ports, it can load with 1x4 or 1x8 mini steel tube PLC splitter inside the box and load with Optitap/ODVA/MINI SC or other outside hardened connectors based on specific requirements, Customer can use as fiberhub to connect with feeder cable and drop cable, it is a very popular option for current FTTH/FTTA solutions.
Features:
Factory -sealed or field assembly
Available with 1x4/1x8 PLC splitter or do direct splicing
IP67 waterproof grade
4/8/12 Ports avaliable
Can load with ODVA,H connector( optitap comatible),Mini SC,AARC or any other customized connector
Strong enough: working under 1200N pulling force long term.
Wall-mounting, aerial installation, or holding pole installation
Decreased angle surface and hight make sure no connector interfering when the operation
Meet IEC 61753-1 standard
cost-effective:save 40% operating time
Application:
Outdoor harsh environment
FTTH Solution
FTTA Solution
Specification:
| Items | Specifications |
| Dimensions LxWxH | 365x137x90mm(Without cover) 375x142x120mm(With cover) |
| Ingress protection | IP67 |
| Temperature range | -40 to + 80°C |
| Cable strength member | Armoured or Non-armoured |
| Cable type | Hybrid or non-hybrid |
| Round cable OD | 5.0mm to 14mm |
| Flat cable dimension | 4.6x8.9mm |
| Cable jacket material | LSZH, PEorTPU |
| Bending Radius | 20D |
| Cable crush resistance | 200N/cm long term |
| Fire protection rating | UL94-V0 |
| Number of PLC | 1 to 2pcs |
| Number of fusion protection sleeve | 1 to 24pcs |
