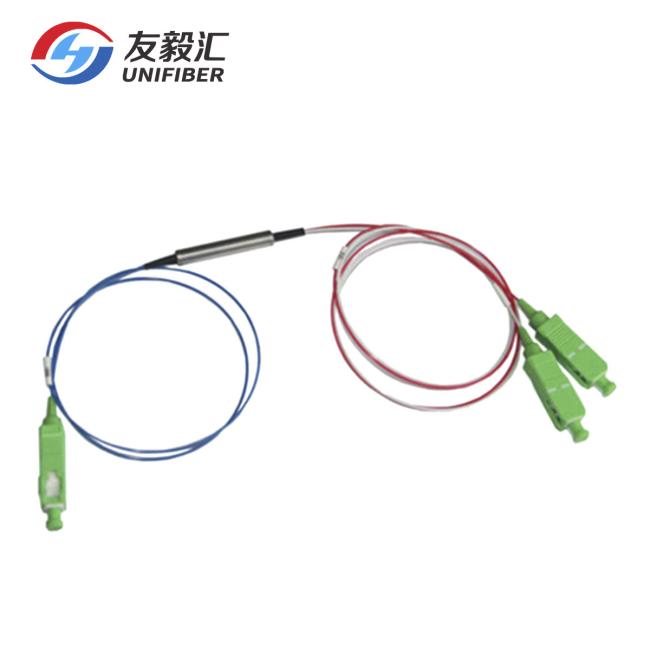

SC/APC 1550nm 3 Port Optical Circulator 900um For Wavelength Drop

Price Negotiable

Price: Negotiable

MOQ: 10pcs

Delivery Time: 3~5 business days

Brand: UNIFIBER-OEM

Product Description

Polarization Insensitive 1550nm 3 Port Optical Circulator utilizes proprietary designs and metal bonding micro optics packaging. It’s a compact, highperformance components, with high isolation, low insertion loss, low PDL, high stability and reliability. It is widely used in combination with fiber gratings and other reflective components in DWDM systems, wavelength add/drop, high speed systems, bi-direction communication systems, dispersion compensation, EDFA application and optical time domain reflectometer (OTDR) measurements.

Features

Low Insertion LossWide Band High Isolation
Low PDL
High Stability and Reliability

Epoxy-free on Optical Path

Application

Optical Amplifier
Metro Area Network

Wavelength Add/Drop

Dispersion Compensation

Bi-Direcation Communication

Specification


			Parameter

			P Grade

			Configuration

			Port 1 to Port 2 to Port 3

			Operation Wavelength (nm)

			1310±30 or 1550±30

			Insertion Loss (dB)

			Typical

			0.6

			Maximum

			0.8

			Typical Isolation (dB)

			≥50

			Minimum Isolation (dB)

			≥40

			Cross Talk (dB)

			≥50

			Polarization Dependent Loss (dB)

			≤0.15

			Polarization Mode Dispersion(dB)

			≤0.1

			Return Loss(dB)

			≥50

			Power Handling (mW)

			300

			Opterating Temperature (℃)

			-10~+75

			Package dimension (mm) (Steel tube)

			Φ5.5xL50

			Package dimension (mm) (ABS box)

			90x20x10
