InlineWall Mount IP68 Fiber Optic Enclosures Outdoor 96 Core

Price Negotiable

Price: Negotiable

MOQ: 10pcs

Delivery Time: 5-8days

Brand: UNIFIBER

Product Description

3 In 3 Out Mechanical Seal Wall Mount Fiber Splice Enclosure 24/48/96 Core

Outdoor IP68 wall mount fiber splice enclosure 24/48/96 core 3 in 3 out mechanical seal

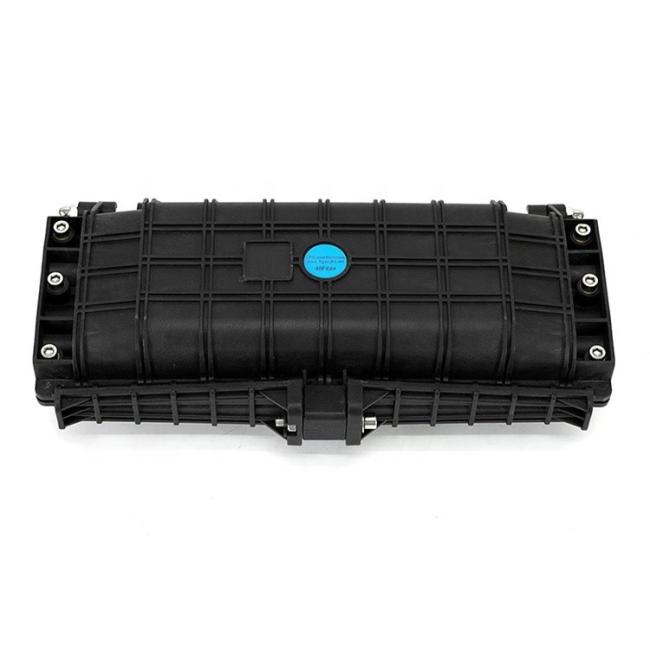

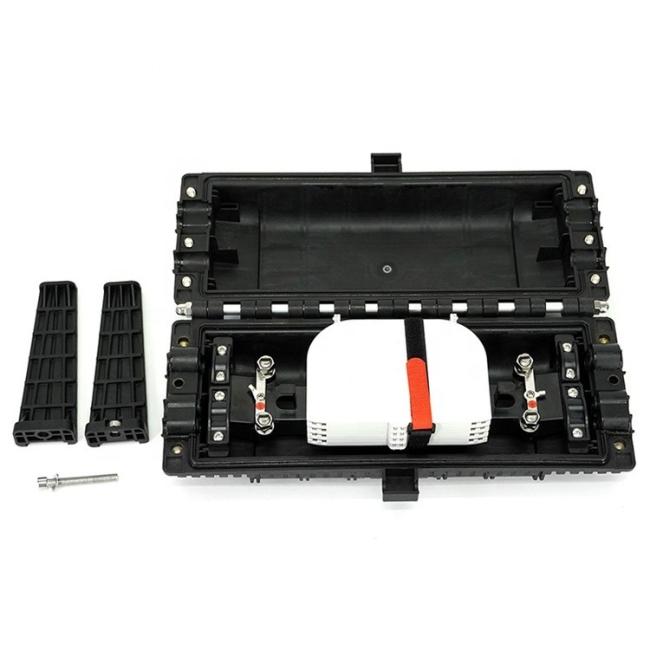

GPJ09-6820 inline closure with a hinged door for easy access and maintenance is an innovate solution to manage up to 96 fibers. The enclosure is ruggedized for harsh environment with IP68 rating, featuring the screw-and-buckle mechanical sealing structure and one-piece sealing rubber convenient for closure opening. It has multiple installation apllication for FTTH with wall mount, aerial and duct mount.

Features

● Ports: 3 inlets, 3 outlets Φ8-20 mm

● Capacity: 96

● Seal: Mechanical

● Waterproof: IP68

● Material: Polymer Modified Plastics

● Applications: Wall mounting, aerial, duct mounting

Specification

Model No.	GPJ09-6820
Style	Inline/Horizontal
Dimensions (L×W×H)	396×200×126 mm
Material	Polymer Modified Plastics
Sealing Type	Mechanical Seal
Protection Grade	IP68
Cable Ports	Inlet	3	Φ8 - Φ20 mm
	Outlet	3
Fiber Splice Capacity	Min 12, Max 96
Tray Capacity	24
Tray Count	4
Weight	2.5 - 2.7 kg
Application	Aerial/ Wall Mounting/ Duct Mounting
Packing Type	Inner Carton		440×200×130 mm (1 PCS)
	Outer Carton		460×420×420 mm (6 PCS)
