4 In 4 Out 288 Core IP68 fiber junction box Mechanical Seal

Price Negotiable
Price: Negotiable
MOQ: 10pcs
Delivery Time: 5-8days
Brand: UNIFIBER
Product Description

4 in 4 out 288 core In-line Underground Fiber Optic Cable Junction Box IP68 Mechanical Seal

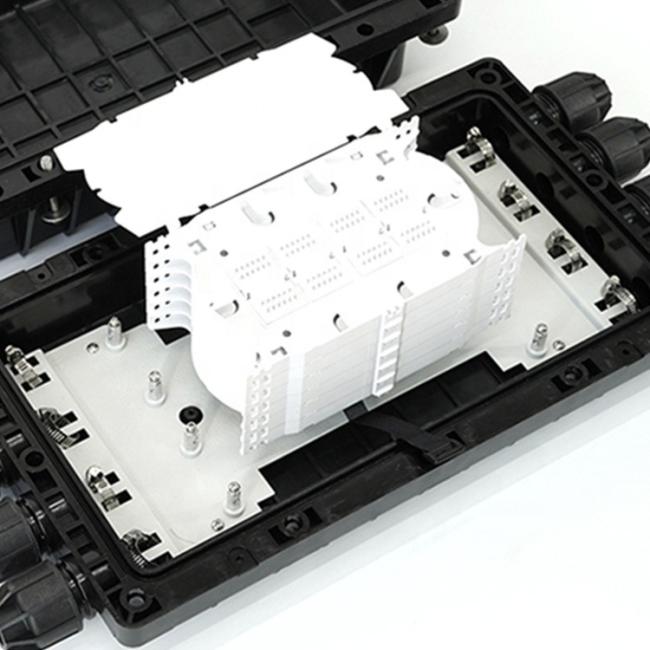

GPJ09-6815-B inline closure is versatile field equipment designed for the mid-span access, fiber branching and splicing. The entries/exits apply to φ9-17mm cables. The box material is high quality Polymer Modified Plastics. It's an ideal choice for ODN solutions.



Features

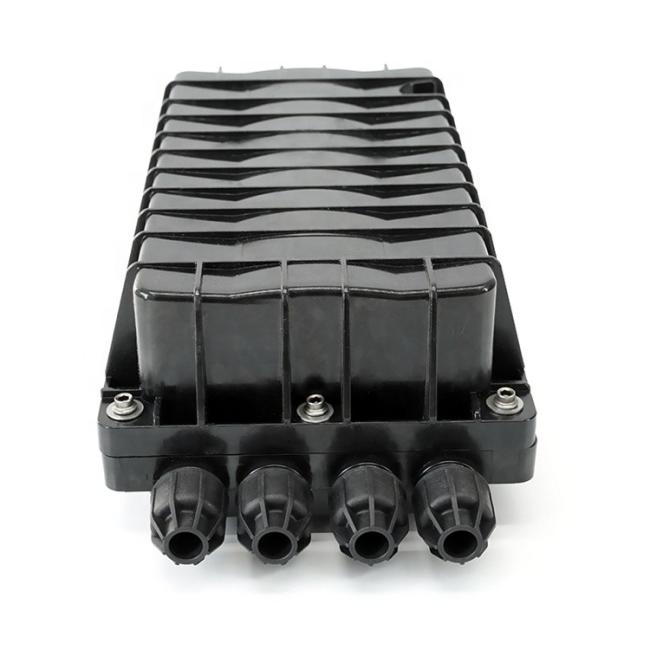

● Ports: 4 inlets (Φ9-17 mm), 4 outlets (Φ9-17 mm)

● Capacity: 288

● Seal: Mechanical

● Waterproof: IP68

● Material: Polymer Modified Plastics

● Applications: Wall mounting, aerial, duct mounting, direct burial



Specification

Model No.
GPJ09-6815-B
Style
Inline/Horizontal
Dimensions (L*W*H)
556×258×156 mm
Material
Polymer Modified Plastics
Sealing Type
Mechanical Seal
Protection Grade
IP68
Cable Ports
Inlet
4
Φ9 - Φ17 mm
Outlet
4
Fiber Splice Capacity
Min 24, Max 288
Tray Capacity
24/48
Tray Count
6
Weight
3.5 - 4.0 kg
Application
Aerial/ Wall Mounting/Duct Mounting/Direct Burial
Packing Type
Inner Carton
580×280×190 mm (1 PCS)
Outer Carton
600×580×410 mm (4 PCS)
