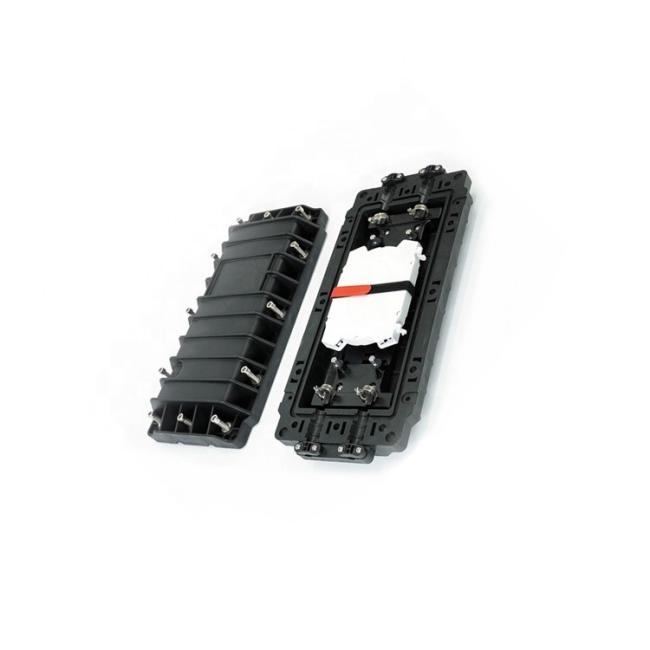

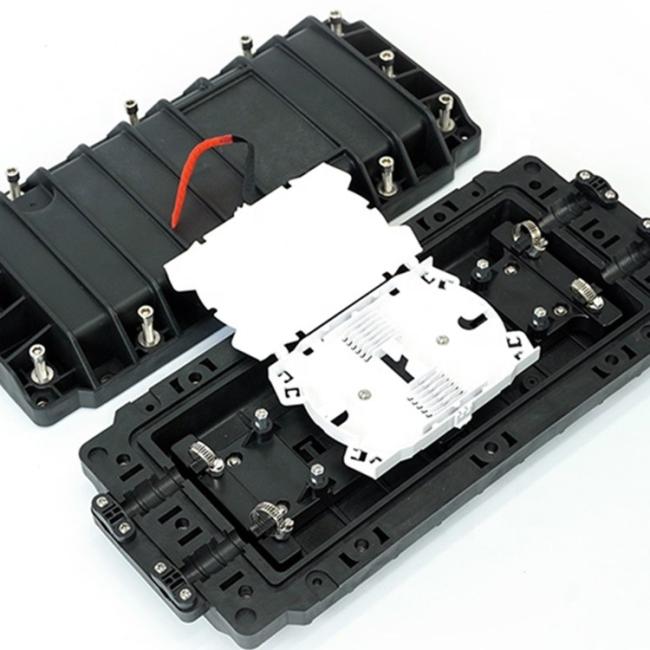

72 Cores Inline Aerial Fiber Splice Enclosure 2 In 2 Out

Price Negotiable

Price: Negotiable

MOQ: 10pcs

Delivery Time: 3~5 business days

Brand: UNIFIBER-OEM

Product Description

Aerial 72 Cores Inline type mechanical seal fosc closure 2 in 2 out

GPJ09-6813 inline closure is a versatile connection equipment, featuring rectangular appearance and workable inner structural design, and applicable to the fiber splicing, storage, and distribution. The minimum fusion splice capacity of this horizontal enclosure is 12F, and the maximum capacity is 48F. It supports aerial/duct mounting/direct burial installation.

Features:

Seal: Mechanical

Waterproof: IP68

Capacity: 72

Ports: 2 inlets (Ф8-13 mm), 2 outlets (Ф8-13 mm)

Material: Polymer Modified Plastics

Applications: aerial, duct mounting, direct burial

Specification:

Model No.	GPJ09-6813
Style	Inline/Horizontal
Dimensions (L×W×H)	460×200×105 mm
Material	Polymer Modified Plastics
Sealing Type	Mechanical Seal
Protection Grade	IP68
Cable Ports	Inlet	2	Φ8 - Φ13 mm
	Outlet	2
Fiber Splice Capacity	72
Tray Capacity	24
Tray Count	3
Weight	2.0 - 2.5 kg
Application	Aerial/ Duct Mounting/ Direct Burial
Packing Type	Inner Carton		540×220×125 mm (1 PCS)
	Outer Carton		560×465×425 mm (6 PCS)
