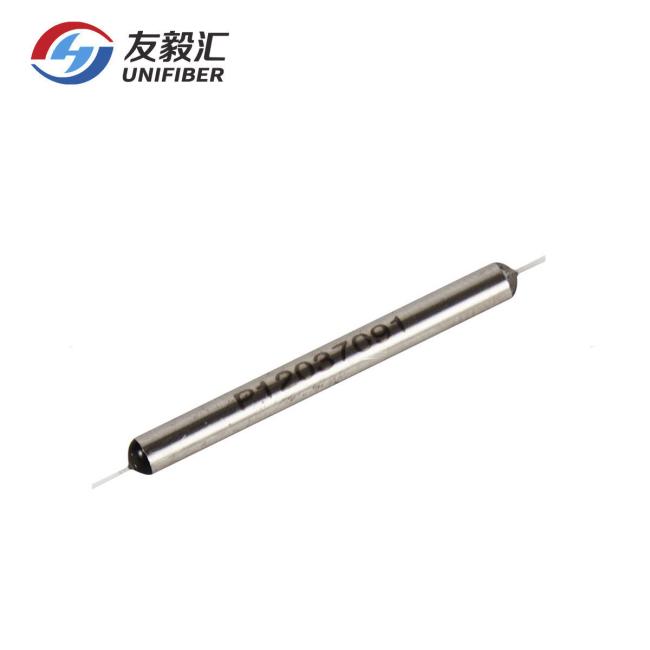

Single Mode 1x2 Fused WDM Splitter 1480nm 250um Bare Fiber For EDFA

Price Negotiable
Price: Negotiable
MOQ: 10pcs
Delivery Time: 3~5 business days
Brand: UNIFIBER-OEM
Product Description

980/1550nm and 1480/1550nm WDM are widely used in EDFA, Which can combine the pump power and optical signal into the Er-fiber.

Features
Low insertion loss
High isolation
Compact Size
Excellent Stability


Application

Long-haul Uni & Bi-directional Telecommunication System

CATV Systems & Fiber Optic Sensor

Digital, Hybrid And Am-video System



Parameters
Unit
Performance Specifications
Operating Wavelength
nm
980/1550
1310/1550
1480/1550
Insertion Loss @ 25°C
dB
0.4
0.3
0.4
Isolation @ 25°C
dB
20 @980nm
18 @1550nm
17
13
PDL
dB
≤0.10
≤0.10
≤0.15
WDL
dB
≤0.10
≤0.10
≤0.15
TDL
dB
≤0.20
≤0.20
≤0.20
Directivity
dB
≥55
≥55
≥55
Return Loss
dB
≥55
≥55
≥55
Fiber Type
-
Corning HI-1060
Corning SMF-28e+
Corning SMF-28e+
Jack Type
-
250μm bare fiber 900μm loose tube
Package Type
mm
3x54 for bare fiber 3x60 for loose tube
