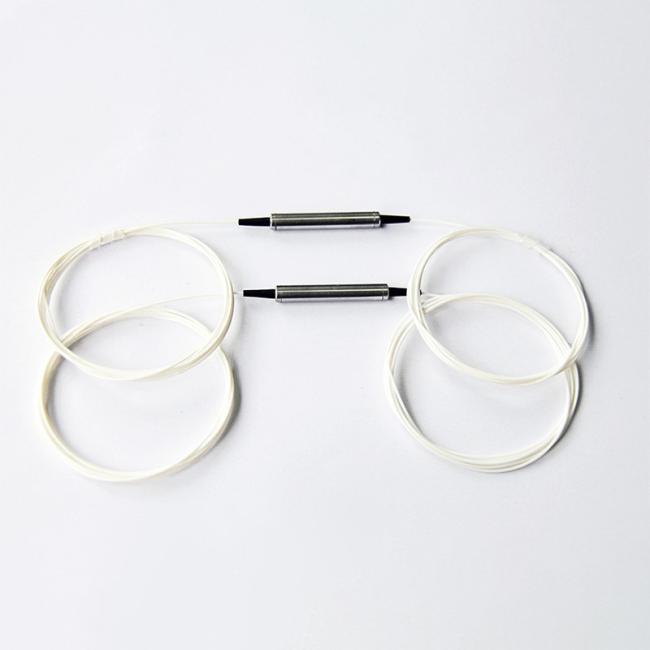

250um 1060nm 1480nm Polarization Insensitive Optical Isolator for EDFAs
Optical Isolator utilizes Faraday effect of Magneto optical crystal. It guides optical light in one direction and eliminates back reflection and back scattering in the reverse direction at any polarization sate.The unique manufacturing process and optical path epoxy-free design enhance the device's high power handling capability. The devices are characterized with high performance, high reliability and low cost. It has been widely used in EDFAs, Raman amplifiers, DWDM systems, Fiber lasers, transmitters and other fiber optic communication equipments to suppress back reflection and back scattering.
Features
High Isolation
Low Insertion Loss
Low Polarization Sensitivity
Applications
Fiberoptic Amplifiers
Fiberoptic LAN Systems
Telecommunications
| Parameter | 1060nm | 1480nm | ||
| Type | Single Stage | Dual stage | Single Stage | Dual stage |
| Grade | P Grade | |||
| Typical Isolation(dB) | 40 | 55 | 41 | 55 |
| Min. Isolation (dB) | 30 | 45 | 31 | 45 |
| Typical Insertion Loss (dB) | 1.5 | 2.4 | 0.4 | 0.5 |
| Max. insertion Loss (dB) | 2.0 | 3.4 | 0.6 | 0.7 |
| Return Loss (In/Out) (dB) | ≥50 | ≥50 | ≥65/60 | ≥65/60 |
| polarization dependent loss(dB) | ≤0.15 | ≤0.15 | ≤0.05 | ≤0.05 |
| polarization mode dispersion(ps) | ≤0.20 | ≤0.05 | ≤0.20 | ≤0.05 |
| Bandwidth(nm) | ±15 | ±15 | ±15 | ±30 |
| Operating Temperature(℃) | -10~+75 | |||
| Storage Temperature(℃) | -40~+85 | |||
| Fiber Type | Corning Hi 1060 | Corning SMF-28 | ||
| Fiber Length(min) | 1M each end | |||
| Package Dimension(mm) | Φ5.5xL30 | |||
| Power Handling(mW) | 300 | |||
