China Ftth 4 Ports SC APC Fiber Optic Wall Plate Outlet 40mm Radius for sale

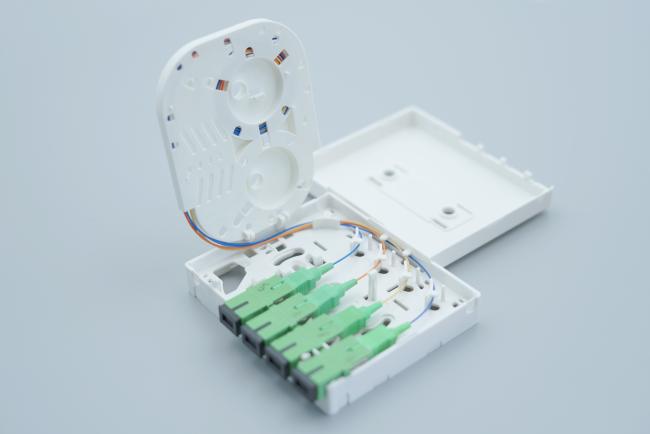

Ftth 4 Ports SC APC Fiber Optic Wall Plate Outlet 40mm Radius

Price Negotiable
Price: Negotiable
MOQ: 100PCS
Delivery Time: 3~5 business days
Brand: UNIFIBER-OEM
Product Description

Ftth 4 Ports Fiber Optic Wall Plate Outlet SC/APC is used for the indoor cable's termination in building and villas, suitable for multiple fiber connection method.



Feature
1. Small size, light weight, beautiful appearance
2. Installed on the wall, with mechanical protection.


Technical
* Fiber radius of curvature:≥40mm
* Optical disk additional loss: ≤0.01dB
* Temperature range: -40°C~+60°C



Specification:
Model No.
FTB104B-S2
Outer carton(mm)
500×390×320/200pcs
Dimensions (mm)
100*83*30
CBM(m³)
0.063
Weight(Kg)
0.062
Gross weight(Kg)
13.8
Cable inlet/outlet
10 / 4
Accessories
Cable diameter(mm)
Φ3mm or Drop cable(2*3mm)
M4×25mm Screw
2 pcs
Max core capacity
4(single core)
Expansion
2 pcs
Adaptor
SC without lug
