China 18 Channel Wavelength Division Multiplexer Ultra Compact CWDM TFF Free Space 20nm for sale

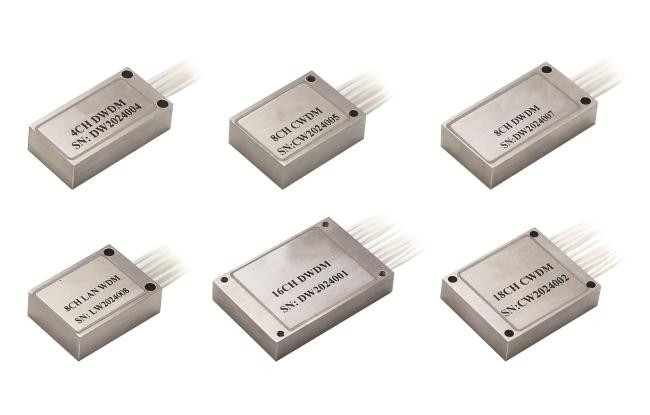

18 Channel Wavelength Division Multiplexer Ultra Compact CWDM TFF Free Space 20nm

Price Negotiable
Price: Negotiable
MOQ: 10pcs
Delivery Time: 3~5 business days
Brand: UNIFIBER-OEM
Product Description

Features
♦ Ultra-compact
♦ Based on TFF technology
♦ Ultra-low Insertion loss
♦ Stable at wide range of operating temperatures
♦ One side fiber feedthrough



Application
♦ CWDM networks

♦ CATV networks
♦ High speed multi-wavelength CWDM transceivers, line-card, portable testing equipment



Specification



Parameters
Units
18 Channels
Insertion Loss
dB
≤2.2
Ripple
dB
≤0.5
Polarization Dependent Loss
dB
≤0.3
Dimension
mm
28 x 22.8 x 6.5
Channel Center Wavelengths
nm
1271 - 1611
Channel Spacing
nm
20
Channel Passband
nm
λc ± 6.5(Min.)
Isolation-Adjacent
dB
≥30
Isolation-Non-adjacent
dB
≥40
Return Loss
dB
≥45
Directivity
dB
≥50
