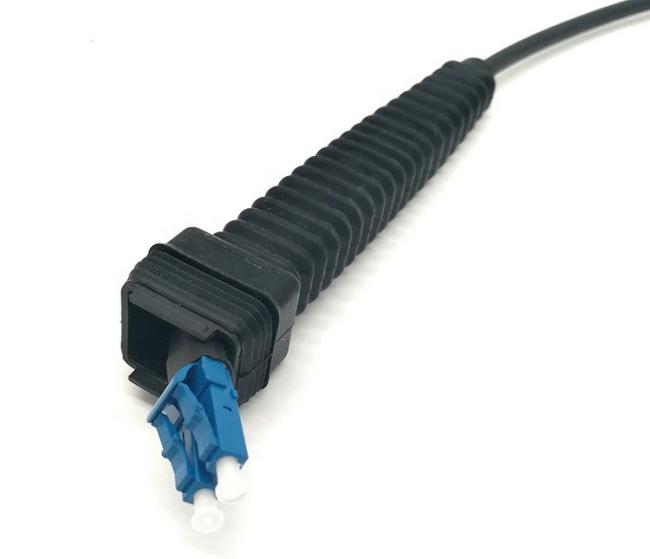

Nokia NSN FTTA CPRI Duplex Fiber Patch Cord LC UPC-LC UPC IP67

Price Negotiable

Price: Negotiable

MOQ: 10pcs

Delivery Time: 3~5 business days

Brand: UNIFIBER-OEM

Product Description

Features
Low insertion loss and back reflection loss.

Good waterproof preformance.
IP67 moisture and dust protection for harsh environments
Adopt Japan Ceramic Ferrule
Low smoke, zero halogen and flame retardant sheath.

Smaller diameter, simple structure, light weight, and high practicability.

Special low-bend-sensitivity fiber provides high bandwidth data transmission.
Easy mount to save time

Applications

Optical fiber communication systems Optical fiber data transmission Building network access Cabling system ODF
FTTX FTTA FTTH applications


Datasheet

Mode	Single Mode ( SM)		Multi Mode (MM)
End-face Polish	UPC	APC	APC
Insertion Loss	Typical ≤0.2dB; Maximum ≤0.3dB		≤0.25dB
Return Loss	≥50dB	≥65dB	≥35dB
Interchangeability	≤0.2dB
Repeatability	≤0.1dB
Durability	≤0.2dB (1000 times mating)
Tensile Strengh	> 10kg
Temperature	≤0.2dB (-40 ,+85 sustain 100 hours)
Humidity	≤0.2dB (+25 ,+65 93 R.H.100 hours)

Waterproof Optional Fiber Patch Cord Customize
Connector type	Duplex LC
Ferrule End-face	UPC, APC
Fiber Core Type	Single-mode (SM: 9/125um), Multimode (MM: 50/125um or 62.5/125um)
Waterproof Solution	ODVA/FULLAXS/OPTITAP/NSN/AARC/PDLC/ODC/CPRI optional
Fiber Cable Shape	bundle fibers
Cable Diameter	φ5.0mm;φ7.0mm
Length	1, 2, 3, 5, 10 ,20,50,100,200 meter or customized length
Jacket	TPU,PVC, LSZH optional
