3 Ports FTTH FWDM Splitter 1310 1490nm SC APC ABS Module

Name: 3 Ports FTTH FWDM Splitter 1310 1490nm SC APC ABS Module
Brand: Shenzhen Unifiber Technology Co.,Ltd

Price Negotiable

Price: Negotiable

MOQ: 10pcs

Delivery Time: 3-5days

Brand: UNIFIBER or OEM

Product Description

Filter WDM module extensively used in optical amplifiers, WDM networks. The device combines or separates light at different wavelengths (1310nm/1490nm/1550nm) in a wide wavelength range. It can expand the capacity of a single fiber to achieve bidirectional communication, so that widely used in optical network upgrade and expansion, or introduce new comprehensive business etc.

Features

Wide Wavelength Range
Low Insertion Loss
High Channel Isolation
High stability and reliability

Applications

System Monitoring
Transmitters and Fiber
Fiber optical amplifier

CATV System

FTTH System

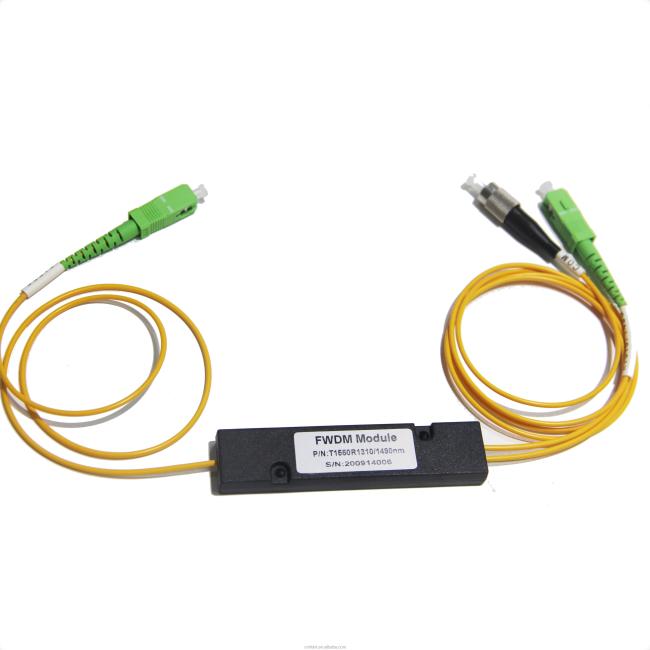

Detailed Image

Name	FWDM
Parameter	5/34 4/35 34/5	Unit
Pass band wavelength	1550+-10 1490+-10 1310+-10 1490+-10	nm
Reflection band 1 wavelength	1310+-40 1310+-40 1550+-10	nm
Reflection band 2 wavelength	1490+-10 1550+-10 1550+-10	nm
Insertion loss	Pass channel <0.6 Reflection channel <0.6	dB
Pass band rippler	Pass channel ≤0.3 Reflection channel ≤0.3	dB
Isolation	Pass channel <0.6 ≥40 Reflection channel <0.6 ≥40	dB
Return loss	>50	dB
Temperature dependent	<0.005	dB/℃
Polarization dependent loss	<0.10	dB
Polarization mode dispersion	<0.10	PS
Directivity	≥50	dB
Maximum optical powder	500	dB
Operating temperature	-20 - +70	℃
Storage temperature	-40 - +85	℃
