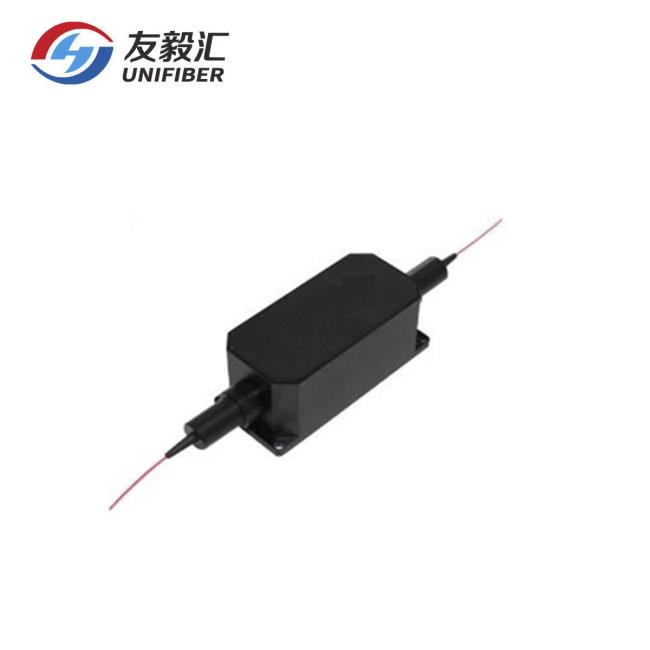

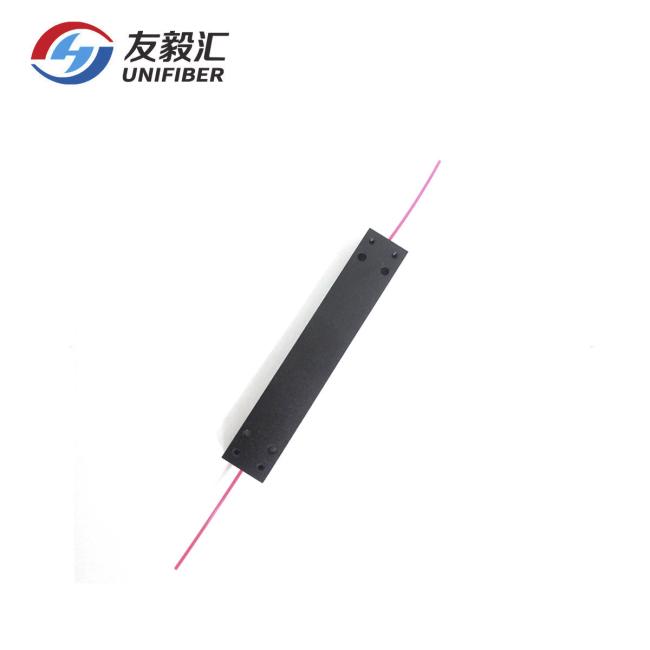

50W High Power Optical Isolator 1064nm 1030nm 980nm For Fiber Laser

Name: 50W High Power Optical Isolator 1064nm 1030nm 980nm For Fiber Laser
Brand: Shenzhen Unifiber Technology Co.,Ltd

Price Negotiable

Price: Negotiable

MOQ: 10

Delivery Time: 3~5 days

Brand: Unifiber or OEM

Product Description

High Power Optical Isolators are magneto-optic devices that preferentially transmit light in the forward direction while absorbing or displacing light propagating in the reverse direction. The handling power up to 50W-average,35kW peak power. Because of low insertion loss,high isolation & return loss,they are widely used in fiber laser.

Features:

High IsolationLow Insertion Loss
High Return Loss
High stability and reliability
Epoxy free on optical path

Application

Fiber optic AmplifiersOptical network
Power monitoring
Fiber sensor

Parameters	Unit	Value	Dual Stage
Center Wavelength	nm	1064 or 1030 or 980
Operating Wavelength Range	nm	±5	±30
Typ. Peak Isolation at 23℃	dB	30	58
Min. Isolation at 23℃	dB	25	≥46
Typ. Insertion Loss at 23℃	dB	0.8	0.6
Max. Insertion Loss at 23℃	dB	1.0	≤0.8
Max. Polarization Dependent Loss at 23℃, only for PI	dB	0.2
Min. Extinction Ratio at 23℃, only for PM	dB	20
Min. Return Loss(Input /Output)	dB	45	55/50
Max. Average Optical Power	W	30, 50, 100
Max. Peak Power for ns Pulse	kW	10,20
Max. Tensile Load	N	5
Package Dimension	mm	82x38x35
Operating Temperature	℃	+10~+50
Storage Temperature	℃	0~+60
