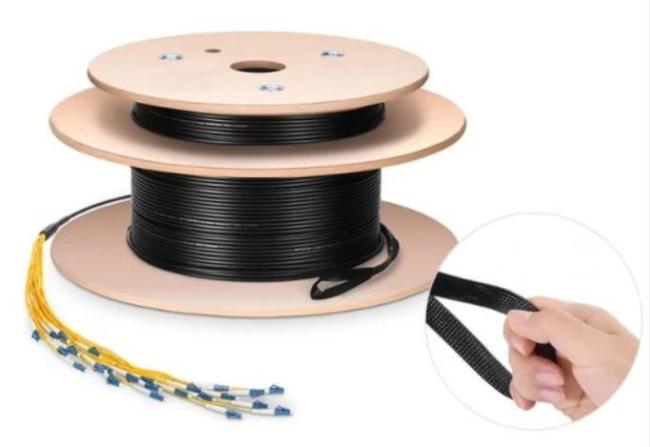

24FO Pre Terminated Multi Fiber Cables OFNP LSZH LC-LC With Pulling Socket
Unifiber providing high-quality pre-terminated cables for indoor and/or outdoor applications, with fanout number ranging from 12 to 144. Available connector types include MPO, SC, LC, FC, LSH, and E2000, and available fanout types include bare fiber, 0.9mm, 1.2mm, 2.0mm, 3.0mm
FEATURES
Supports up to 12F, 24F, 48F, 72F, 96F, 144F, customized products are available
100% pre-terminated and tested in factory to ensure transfer performance
Jacket material: LSZH, OFNR, OFNP available
Rapid configuration and networking, reduce installation time
Supports 40G and 100G network applications
APPLICATIONS
Connected with transfer modules on one end, equipment port on the other end.
Connected with trunk cables on one end, equipment port on the other end.
| Connector A | SC, LC, FC,ST, MU, DIN, D4, E2000, MTRJ, SMA... | |
| Connector B | SC, LC, FC,ST, MU, DIN, D4, E2000, MTRJ, SMA... | |
| Polishing | UPC, PC, APC | |
| Fiber type | SM | OS2 G652D, G657A1, G657A2,G655... |
| MM | OM1, OM2, OM3, OM4, OM5 | |
| Fiber count | 12/24/36/48/72/96/144 core | |
| Strength member | China aramid yarn, dupont kelver yarn | |
| Fan-out diameter | 0.9mm, 2.0mm, 3.0mm... | |
| Jacket material | PVC, LSZH, OFNP, OFNR, PE, TPU | |
| Length | 1, 3, 5, 10m or customized | |
| Color | Yellow, Orange, Aqua, Violet, Green, Blue, Gray, White... | |
