144 Core Wall Mounting Dome Fiber Splice Closure Mechanical Seal 1 Uncut 4 Branch Ports
Price:
Negotiable
MOQ:
10
Delivery Time:
3~5 days
Brand:
Unifiber or OEM
Product Description

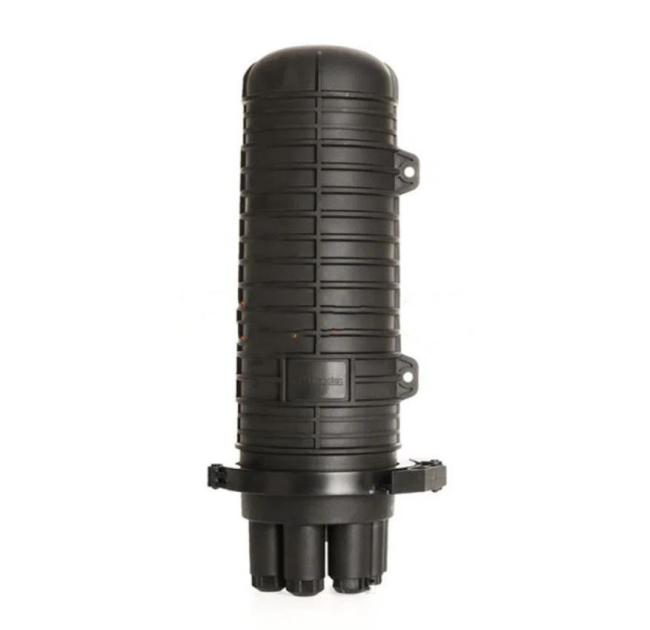

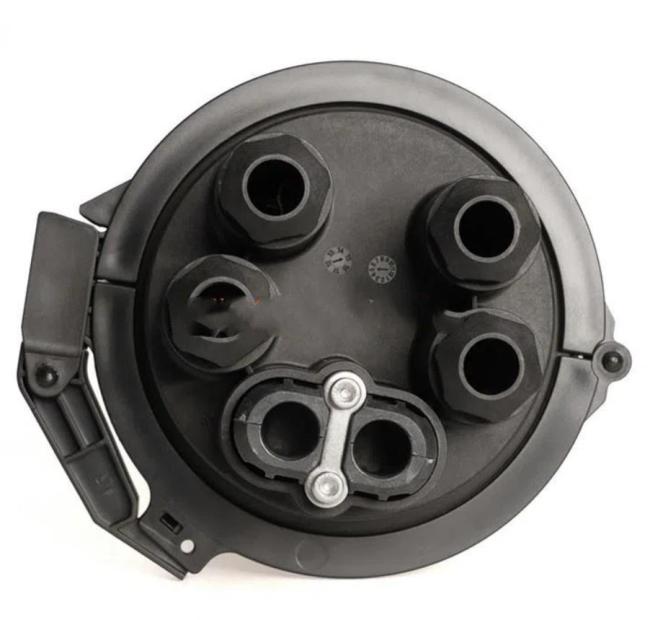

GPJ09-5607 dome closure features the tray-buffer design which protects the fibers during the process of splice fusion. The sealing type of both its housing and involved cables are mechanical. The cable entries include 1 uncut port and 4 branch ports, suitable for Ф8~18mm diameter range. 4 splice trays can be installed in this fiber closure, and the maximum capacity is 144F (single) and 432 (ribbon). Many sorts of sealing ring are available for different types of cable sealing.
| Model No. | GPJ09-5607 | |||
| Style | Dome/ Vertical | |||
| Dimensions (mm) | 525 × Φ225 | |||
| Material | PP+GF | |||
| Sealing Type | Mechanical Seal | |||
| Protection Grade | IP68 | |||
| Cable Ports | Uncut | Oval | 1 | Φ8 - Φ18 mm |
| Branch | Round | 4 | Φ8 - Φ18 mm | |
| Fiber Splice Capacity | Single | 144 | ||
| Ribbon | 432 | |||
| Tray Capacity | Single | 36 | ||
| Ribbon | 6 | |||
| Tray Count | 4 | |||
| Weight (kg) | 3.8 - 4.3 | |||
| Application | Aerial/ Wall Mounting/ Direct Burial | |||
| Packing Type | Inner Carton | 540×245×210 (1 PCS) | ||
| Outer Carton | 555×510×675 (6 PCS) | |||
