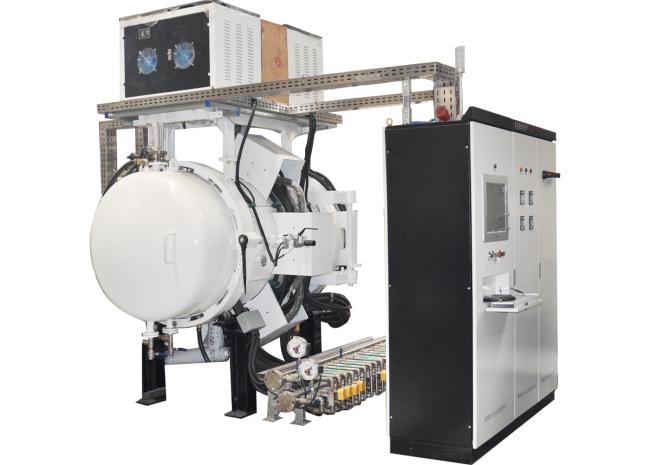

Automatic Control Metal Sintering Furnace Power Supply AC380V±10% 50HZ

Products Characteristic

1. Horizontal design for easy loading/unloading and easy maintenance.

2. Automatic control of the entire process

3. This kind of Molybdenum strip(Metal)sintering furnace is single room,horizontal type,recycle heating furnace, it adopt Molybdenum heating element of low voltage and large current.All the technical process is automatic controlled, monitored, chased, fault diagnosed which showed and recorded by computer.

4. Furnace heating element, insulation and charging box are all in cylindrical structure, compared with the traditional square structure: Charging room is larger, size is more flexible, the temperature and atmosphere more uniform.

Vacuum pump: backing pump, Roots-type pump(slide valve pump, rotary vane pump, screw pump and so on can be selected for the backing pump, allowing customers to choose world-class brand products)

Power supply: General standard is three phase five wire system AC380V±10% 50HZ.

Control power supply: Single-phase AC210V-250V 50HZ design(Different countries and regions can be designed according to local grid standards)

Temperature measurement mode: WRe5-26 thermocouple

Technical parameters:

Applications: For high density alloy, tungsten-nickel alloy, tungsten-copper alloy, titanium alloy, carbon-atmosphere-sensitive metal products.

Customer Benefits

• High efficiency, reliability, long service life and ease of operation

• Low HIP gas consumption

• High energy efficiency

• Elaborated safety system for reliable and full-automatic operation

• Proven design and performance – reliable, sustainable, durable
