One Button Operation Vacuum Tempering Furnace , Vacuum Nitriding Furnace

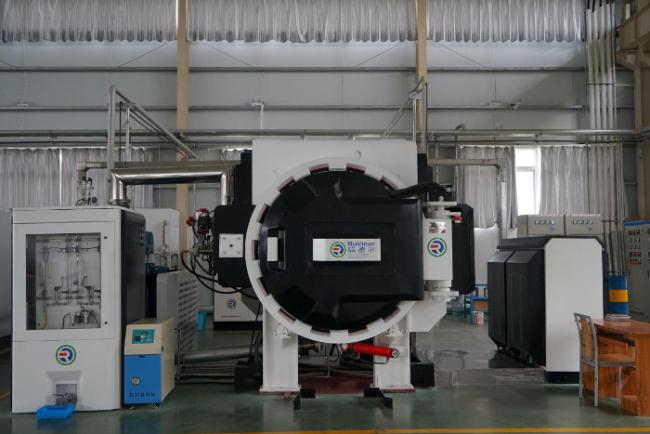

One-button operation, automatic and intelligent production of high temperature and high pressure sintering furnace
1, The sintering HIP furnace is single-chamber, horizontal and periodic heating.It adopt low voltage and large current graphite heating element to heating, and it has multiple heating units, each unit controls the temperature separately.The whole process is automatically controlled, monitored, tracked and displayed and recorded by the computer.
2,It including control system,heating system,debinding system(negative pressure debinding system),vacuum system,partial pressure sintering system,pressure sintering system,cooling water system,rapid cooling system,auxiliary system and safety system.
3,It adopt the structure of built-in graphite liner in insulation tube.In the mass,it can meet the strict requirements of furnace temperature uniformity and atmosphere uniformity in the sintering process of high performance cemented carbide.
4,Technical parameters
| Specifications | RDE-DYL-224 | RDE-DYL-336/RDE-DYL-339 | RDE-DYL-3535120/RDE-DYL-4412 | RDE-DYL-5512/RDE-DYL-5518 | RDE-DYL-5527 |
| Maximum load | 50Kg | 150Kg/200Kg | 300Kg/350Kg | 1200Kg/1500Kg | 2000Kg |
| Temperature control mode | Single zone/2-zone | 2-zone/3-zone | 2-zone/3-zone | 3-zone/4-zone | 4-zone |
| Atmosphere and temperatureuniformity | Com≤±0.15% Hc≤±0.25KA/M |
Com≤±0.15% Hc≤±0.25KA/M |
Com≤±0.2% Hc≤±0.3KA/M |
Com≤±0.2% Hc≤±0.3KA/M |
Com≤±0.2% Hc≤±0.3KA/M |
|
Cooling period (Sintering temperature—100℃) |
40min-120min | 40min-150min | 120min-360min | 180min-420min | 180min-480min |
