MTV Security CCTV Camera CS Mount Lens Holder Bracket With IR 650nm Filter

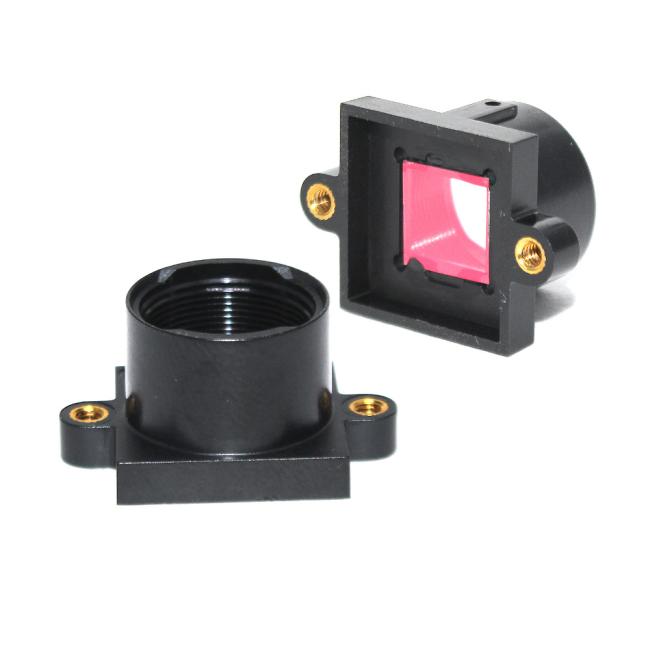

M12 Lens Mount MTV Security CCTV Camera m12 Lens Holder Bracket with IR650nm filter

Performance parameters

This product is suitable for network cameras, millions of HD cameras, infrared cameras, bolts and other cameras, let it cut off
Or through, the name is: dual filter switcher
The main role and function:
Corrects daytime polarization problems and improves nighttime brightness
working principle:
IR-CUT Dual Filter Switcher consists of: One IR Cut Filter and One Fully Permeable Filter + Electromagnetic Structure

1. Product material: lower cover PC plastic + lens mount PC plastic
2. Coil impedance: 22±5Ω (at room temperature 25°C)
3. Drive voltage: Operating voltage: 4-12V
Drive pulse signal time: 100ms
4. Inductance: 430uH±5%
5. Actuation direction, posture: the red wire is connected to the positive voltage, the black wire is connected to the negative voltage, and the product is switched to the infrared cut filter
Light film (used during the day), on the contrary, the product is switched to the white film (night use) direction, posture: side, front, back (all-round test does not move, incomplete, interference can not)
6. Checker IR-CUT test board/set voltage: 4V/set drive pulse signal time: 100ms±10ms
7. Actuation mode Adopt DC voltage circuit to control magnetic rotary magnetic valve
8. Static energy retention Product retains power even when no power is applied
9. Normal temperature and humidity standard Temperature: +25°C±5°C, humidity 65%±20%
10. Magnetic induction 1000Gs ± 10%, temperature 120 °C ± 5 °C
11. Terminal White, 2Pin*1.25mm, Insertion Force 0.5Kg

Package: 1PCS IR CUT

Product characteristics

The positive polarity is red and black are negative, polarity reverse order is red and blue negative.

The red filter requirements in the center before product package.

High temperature resistance and no deformation.

Provide different matching schemes according to the customer's requirement.

                  With IR CUT                                     Without IR CUT

                      With IR CUT                                 Without IR CUT
