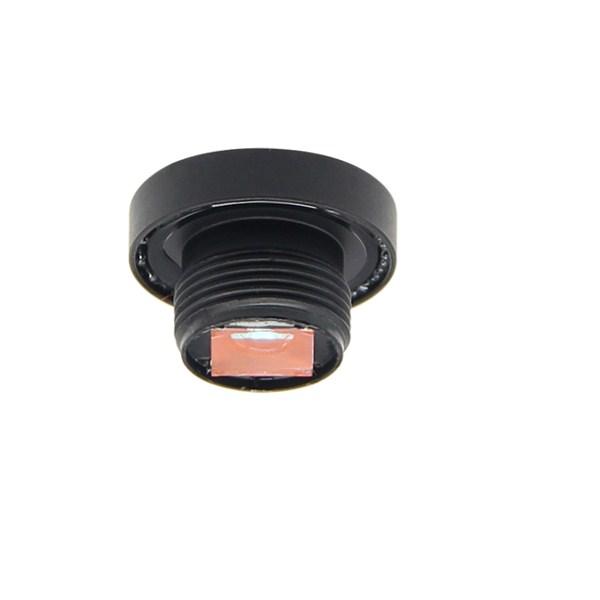

Rear View Night Vision M8 1.02mm CCTV lens for OV7740 chip sensor
Cheap Mini lens car rear view rear view camera lens car security wide angle night vision M8:
| Model | MR-T10222S-O7740 | Mount | M8*0.5 |
| Focal Length | 1.02mm | Resolution | Megapixl |
| Sensor Size | 1/5' | Distortion | <6.5% |
| Aperture | F1.8 | RI | >78% |
| MOD | 0.2m | CRA | <14° |
| Angle of View | 131°*110°*88° | Structure | 4E+1 IR |
| Operating Temp. | -40°C ~ +85°C | Sensor | OV7740 |
| Application | rear view camera lens | ||
Features:
1. M8 mount Mini lens for car rear view rear view cameras
2. 1/5" Format HD wide angle vehicle driving recorder lens
3. 1.02mm focal length 131 Degree of DFOV car security wide angle night vision lens
4. F1.8 big aperture, large number of light through the lens surface
Advantages and characteristics of lens:
1. Day & Night
With special design, IR series lenses make the portrait aberration lowest, and the focal planes for the visible and infrared light ranges almost the same, which means that the surveillance camera can deliver sharp images in both day and night applications.
2. Flat Image
With the use of advanced optical design technology, our lenses can get high definition and high contrast performance over the entire image field, from the center to the periphery. Also, these lenses are the most suitable for the image cut-out function of IP cameras.
3. Multi Coating
To minimize double image and flare present in backlight, multi coating is adhered to the lens surface. Hence, the lenses can show high contrast resolution performance even in backlight.
4. High resolution lens
The pixels of high resolution lenses are beyond 5.0 Megapixel, IR Cut and Lens Holder are available as per request.
