1/6 inch OV7670 OV9770 sensor 1.58mm M5 5mp pinhole lens 88 degree for endoscope camera module GC0308
Price:
Negotiable
MOQ:
Negotiable
Delivery Time:
The products will be ready within 3 to 7 days, New products will need 30 days
Brand:
Octavia
Product Description

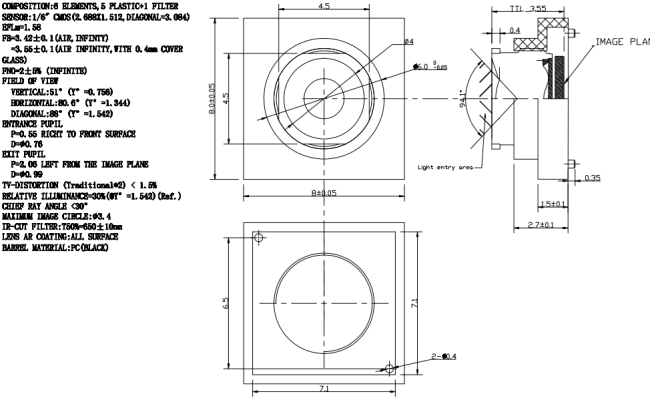

1/6 inch OV7670 OV9770 sensor 1.58mm M5 5mp pinhole lens 88 degree for endoscope camera module GC0308:
| Model | MR-N0158WA | Mount | M5*0.35 |
| Focal Length | 1.58mm | Distortion | <1.5% |
| Sensor Size | 1/6'' | IR Filter | IR 650nm |
| Aperture | F2.0 | Lens holder size | 8*8*2.6mm |
| Material | Plastic | Max image circle | 93.4 |
| Angle of View | 88°*80.6°*51° | Resolution | 5MP |
| Application | Pinhole plane lens, doorbell lens | ||
Features:
1. 1.58mm pinhole mini optical Lens, 5MP resolution
2. 1/6" Format lens with M5*0.35 mount for endoscope camera
3. Dimension 3*5mm, sensor AR0261 OV9770, GC0308,etc, work with other 1/8, 1/9 cmos available.
4. All plastic lenses 6P, FB=3.42mm, 0.4g weight
Supply Ability:10000 pcs per month
Packaging & Delivery
100 pcs lens / bag
5000 pcs lens / carton
Or as your request
