Flame Retardant XLPE Power Cable PVC Sheathed Indoors And Outdoors Co Extrusion
Flame Retardant XLPE Power Cable PVC Sheathed Indoors And Outdoors Co Extrusion
XLPE Power Cable Applications
XLPE Power Cable are used for electricity supply in low voltage installation system, XLPE Power Cable are suitable for installation in indoors and outdoors, in cable ducts, under ground, in power and switching stations, local energy distributions, industrial plants, where there is no risk of mechanical damage.
XLPE Power Cable Details
Note:
Insulation identification as per standards or customer requirement
Standards
International: IEC 60502, IEC 60228
China: GB/T 12706.2-2008
Other standards such as BS,VDE and ICEA upon request
Construction
Conductor : Compact stranded copper conductor, Cl.2 as per IEC 60228
Conductor Screen: Semi-conductor
Insulation : XLPE(cross-linked polyethylene) rated at 90 ℃
Insulation Screen: Semi-conductor
Screen : Copper tape
Sheath : PVC type ST2 to IEC 60502, black
Technical data
Rated voltage: 16 kV
Maximum Conductor Temperature: under normal (90 ℃), emergency (130℃) or short circuit no more than 5 s (250℃) conditions.
Min. Ambient Temp.: The cable shall be pre heated if the ambient temperature is below 0℃
Min. Bending Radius: single core cable 20(d+D)±5%
Multi-core cable 15(d+D)±5%
XLPE Power Cable Technical Specifications
| Nom. Cross-section of conductor | Strands No./Dia. Of Conductor | Insulation Thickness | Thickness of Copper Strip | Sheath Thickness | Approx. O.D. | Approx. | Max. D.C Resistance of Conductor (20 ℃) | Testing Voltage A.C | Current Rating | |
| Weight | In air (A) | In soil(A) | ||||||||
| 1×50 | 19/1.86+0.01 | 8.0 | 0.12 | 2.0 | 33.4 | 1368 | 0.387 | 72 | 245 | 225 |
| 1×70 | 14/2.56+0.01 | 8.0 | 0.12 | 2.0 | 35.1 | 1625 | 0.268 | 72 | 305 | 275 |
| 1×95 | 19/2.56+0.02 | 8.0 | 0.12 | 2.1 | 36.9 | 1943 | 0.193 | 72 | 370 | 330 |
| 1×120 | 24/2.56+0.02 | 8.0 | 0.12 | 2.1 | 38.4 | 2223 | 0.153 | 72 | 425 | 375 |
| 1×150 | 30/2.56+0.01 | 8.0 | 0.12 | 2.2 | 40.0 | 2543 | 0.124 | 72 | 485 | 420 |
| 1×185 | 37/2.56+0.02 | 8.0 | 0.12 | 2.2 | 41.8 | 2964 | 0.0991 | 72 | 555 | 475 |
| 1×240 | 48/2.58+0.02 | 8.0 | 0.12 | 2.3 | 44.2 | 3592 | 0.0754 | 72 | 650 | 555 |
| 1×300 | 60/2.58+0.02 | 8.0 | 0.12 | 2.4 | 46.6 | 4245 | 0.0601 | 72 | 745 | 630 |
| 1×400 | 60/2.93+0.02 | 8.0 | 0.12 | 2.5 | 49.7 | 5199 | 0.047 | 72 | 870 | 720 |
| 1×500 | 60/3.33+0.02 | 8.0 | 0.12 | 2.6 | 53.1 | 6267 | 0.0366 | 72 | 1000 | 825 |
| 1×630 | 60/3.76+0.02 | 8.0 | 0.12 | 2.7 | 56.7 | 7685 | 0.0283 | 72 | 1160 | 940 |
| 3×50 | 19/1.86+0.01 | 8.0 | 0.10 | 3.1 | 69.4 | 4789 | 0.387 | 72 | 185 | 200 |
| 3×70 | 14/2.56+0.01 | 8.0 | 0.10 | 3.2 | 73.3 | 5664 | 0.268 | 72 | 230 | 250 |
| 3×95 | 19/2.56+0.02 | 8.0 | 0.10 | 3.3 | 76.9 | 6679 | 0.193 | 72 | 280 | 300 |
| 3×120 | 24/2.56+0.02 | 8.0 | 0.10 | 3.5 | 80.6 | 7659 | 0.153 | 72 | 310 | 330 |
| 3×150 | 30/2.56+0.01 | 8.0 | 0.10 | 3.6 | 83.8 | 8677 | 0.124 | 72 | 360 | 380 |
| 3×185 | 37/2.56+0.02 | 8.0 | 0.10 | 3.7 | 87.9 | 10076 | 0.0991 | 72 | 400 | 425 |
| 3×240 | 48/2.58+0.02 | 8.0 | 0.10 | 3.8 | 92.8 | 12073 | 0.0754 | 72 | 470 | 490 |
| 3×300 | 60/2.58+0.02 | 8.0 | 0.10 | 4.0 | 97.9 | 14188 | 0.0601 | 72 | 540 | 555 |
| 3×400 | 60/2.93+0.02 | 8.0 | 0.10 | 4.2 | 104.6 | 17261 | 0.047 | 72 | 610 | 625 |
Ordering Advice
Application Standard: IEC/BS/UL/GB
Number of Cores
Conductor Size & Construction
Type of Insulation
Armored or unarmored. If armor, the armor type & material
The Requirement of Sheath
Length of Cable & Packing Requirement
Other Requirement

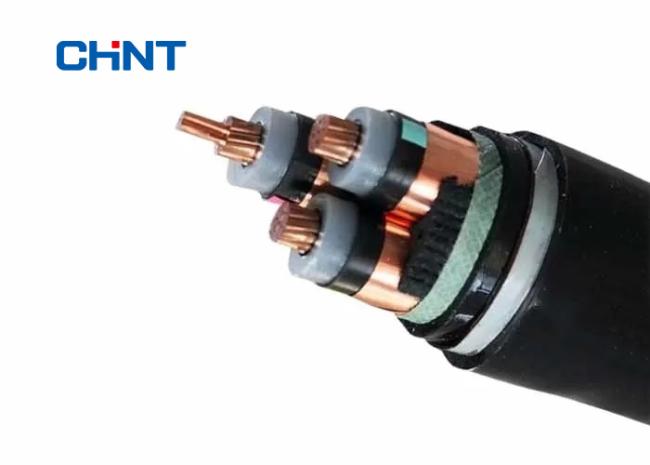

XLPE Power Cable Picture
