Stainless Steel Flat Wire Mesh Belt Acid Resistance For Chemical Industry
Acid resistance stainless steel flat wire conveyor belt for Chemical industry
Description of flat wire conveyor belt
Flat Wire Conveyor Belt is highly acclaimed for its easy cleanability and large open area that assures high continuous flow of air, liquids or gases through it. It is highly recommended for industrial applications where stability and good drainage is paramount . Ideal for use in multi-tier conveyors where headroom is restricted , this is also installed in food processing industry for its high level of hygiene . It is capable of use in normal speed as well as high speed conveyors . At the sides of the belt , there are welded ring or clanged edge on the cross rods .
Flat wire conveyor belt has the features of easy flow of air , liquids or gases , Flat surface , easy to clean , easy to replace the damaged parts which are damaged , made from cross rods and flat metal strip , Can be used at conveyor speeds of less than 1 meter per minute to about 25 meters per minute , Large open area .
Flat wire conveyor belt has so many application usage . Such as Product handling systems , Sorting systems , Washing systems , Painting , Cleaning , Transferring , Parts washing , Bread production systems , Drying systems , Cooling systems , Food processing , Freezing and Bakery .
Detail size of flat wire conveyor belt
| Item | Flat wire conveyor belt |
|
Material |
carbon steel, SS 201, SS 304, SS 316. |
|
Spiral pitch |
12.7 mm to 40 mm |
|
Rod pitch |
12.7 mm, 25.4 mm, 38.1 mm, 50.8 mm |
|
Rod diameter |
3 mm, 4 mm, 5 mm, 6 mm, 8 mm |
|
Belt width |
200 mm to 4000 mm |
|
Open size |
1" × 1", 1/2" × 1", 1/2" × 1/2". |
|
Belt speed |
from less than 1 m/min to 25 m/min |
|
Temperature range |
-30 °C to 400 °C |

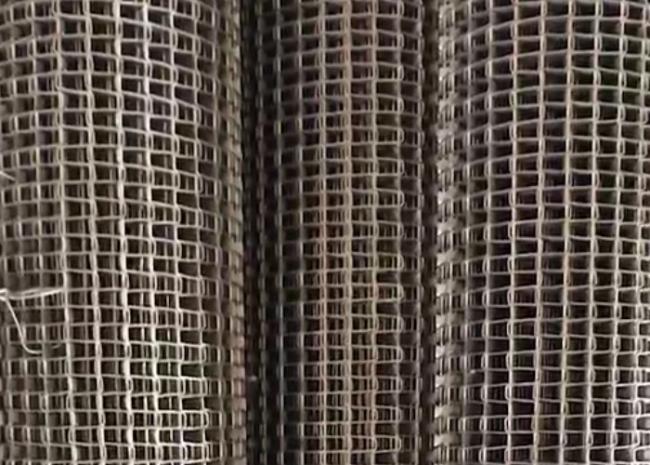

Pictures of flat wire conveyor belt
