Durable 25 Tooth Sprocket , SS Conveyor Sprockets Alkali Resistance For Roller Chain
304 stainless steel chain sprockets long lifetime for conveyor belt
Introduction of stainless steel sprockets
Material : steel or stainless steel, C45, A3, Q235,Q345, S235JR,C22, C40,42CRMO4,PA6, POM
Drawing as standard or approved by client before production
Standard : ANSI ,DIN ,JIS ,BS, ( SATI, CHIARAVALLI, BEA,MARTIN, BROWNING,KANA)
Heat treatment : Harden teeth, tempering, queching
Surface treatment : zinc plated, blacken, phopharization, carborized
Process : Forging( casting)---lathe- teeth shaping---finishing---oil washing---Packing ,made by CNC machine
Inspection : All items are checked and tested thoroughly during every working procedure and after the product is finally manufactured to ensure that the best quality product enter into the market . Durable , bad condition Resistance
Detiail size of stainless steel sprockets
| R2060 roller diameter d=11.91 P=19.05 T=11.10 | |||||
| Teeth | Func teeth | Bore | Inside dia | Hub dia | Height |
| 15 | 7 1/2 | 20 | 93.67 | 70 | 40 |
| 17 | 8 1/2 | 20 | 105.47 | 70 | 40 |
| 18 | 9 | 20 | 111.40 | 70 | 40 |
| 19 | 9 1/2 | 20 | 117.34 | 80 | 40 |
| 20 | 10 | 20 | 123.30 | 80 | 45 |
| 21 | 10 1/2 | 20 | 129.26 | 80 | 45 |
| 22 | 11 | 20 | 135.24 | 80 | 45 |
| 23 | 11 1/2 | 20 | 141.22 | 80 | 45 |
| 24 | 12 | 20 | 147.21 | 80 | 45 |
| 25 | 12 1/2 | 20 | 153.20 | 80 | 45 |
| 26 | 13 | 20 | 159.20 | 80 | 45 |
| 27 | 13 1/2 | 20 | 165.21 | 80 | 45 |
| 28 | 14 | 20 | 171.22 | 85 | 45 |
| 29 | 14 1/2 | 20 | 177.23 | 85 | 45 |

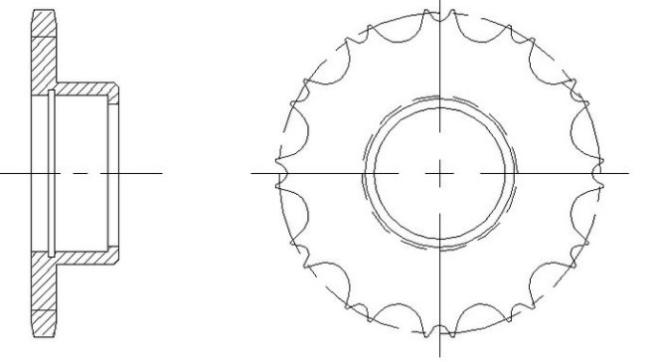

Drawing and picture of stainless steel sprockets
