Seafood frozen oven 304 stainless steel wire mesh spiral mesh belt

Price Negotiable
Price: Negotiable
MOQ: 3 meters
Delivery Time: up to your quantity
Brand: Reking
Product Description

Seafood frozen oven 304 stainless steel wire mesh spiral mesh belt





Introduction of spiral mesh belt



Stainless steel spiral mesh belt is the good cornering performance . It can achieve a 180 degree turn and runs smoothly. It has a flat mesh surface. It can carry heavier pressure and tension; It has good ventilation and air permeability, which is clean and non-toxic, and is easy to clean. It is very convenient to repair and disassemble.It also can be customized according to customer's needs.





Specification of spiral mesh belt



Item: Spiral mesh belt

Material : Low carbon steel , 45 # steel , 304 stainless steel , 1Cr18Ni9Ti stainless steel , 0Cr18Ni14NO2CU2 acid resistant steel.

Common size : Common specifications are 700mm , 800mm wide , but can also be manufactured according to customer demand .
Surface treatment : The mesh belt usually has a special treatment to the surface , oil , pickling or electrolytic polishing .

Features :  Excellent running capabilities and can go 180 degree curves . Smooth belt surface with good air circulation . Can bear high pressure and stress . Easy to maintain and dismantle , side guards available . Easy to clean

Usage : It is widely used in glass industry, mesh belt furnace, decorating furnace mesh belt. Food processing industry, dehydrated vegetables , frozen food before processing , machine belt , chain mesh , powder metallurgy , metal heat treatment, hardening , sintering , brazing,  baking and so on .



Detail size of spiral mesh belt



Item Pitch Belt width Rod diameter Wire diameter U-shaped chain link height Width of U-shaped chain link
Normal chain link type 3/4" 2.2 5mm 2mm 11mm 28mm
Normal chain link type 1" 1.7 to 2.2 5mm 2mm 11mm 29mm
Heavy duty chain link type 1" 2.2 5mm 2mm 11mm 36mm
Heavy duty chain link with double reinforcing plate links 1" 1.7 to 2.2  5mm 2mm 11mm 41mm
With middle chain links 3/4" 1.1 (inner) 5mm 2mm 11mm 28mm

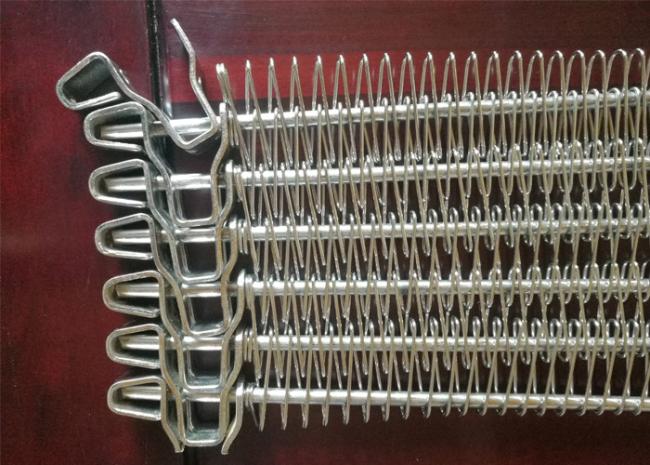

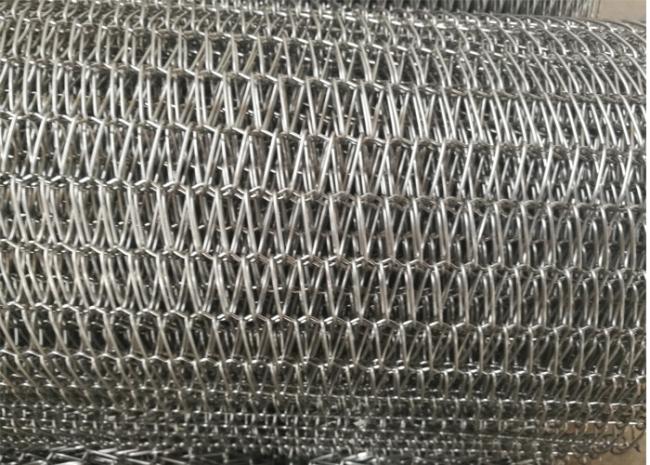

Pictures of spiral mesh belt
