30 Meters 316 Stainless Steel Woven Wire Mesh High Temperature Resistance Antiacid
30 Meters 316 Stainless Steel Woven Wire Mesh High Temperature Resistance Antiacid

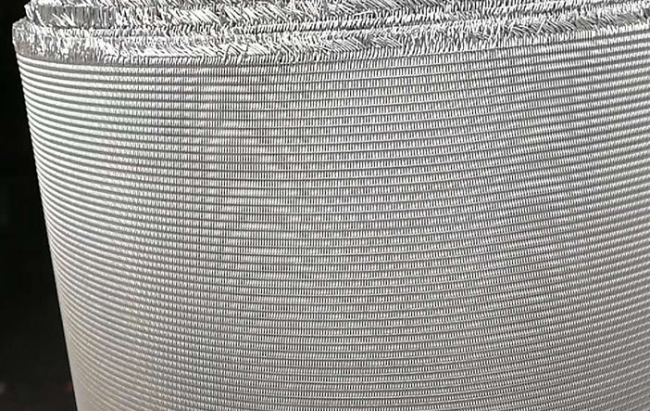

Description of stainless steel Dutch woven wire mesh
Stainless steel Dutch screens have different warp and weft numbers and diameters: more wefts and thicker warp threads. It is divided into plain weave and twill Dutch weave.Through continuous technological innovation and improvement, we can produce stainless steel wire mesh of various specifications of reverse Dutch weaving patterns.
| Product name | 30 Meters 316 Stainless Steel Woven Wire Mesh High Temperature Resistance Antiacid |
| Type | Stainless steel Dutch Woven wire mesh |
| Diameter | 0.015 - 0.9mm |
| Weave Style | Plain DutchWeave,Twill DutchWeave |
| Hole Size | 3 -347 micorn |
| Material | 304, 304L, 316, 316L, 310s,etc |
| Mesh Count | 7-3500 Mesh |
| Usage | Protection mesh,filter |
| Color | Silver |
| Size | Customized |
| Sample | Avaliable |
| Packing | Individually packed in waterproof plastic bags |
| MOQ | 1 meters |
| Delivery Tim | 8-14 days |
| Processing Service | Decoiling |
| Length | 30m/roll |
| Width | 1.0m |
| Weaving | plain weave stainless steel dense mesh (plain-dense), twill weave stainless steel dense mesh (twill-dense), bamboo flower woven stainless steel dense mesh, contrast woven stainless steel dense mesh (also known as contrast mat type mesh conveyor belt ) |
| Processing Service | Plain Dutch Weave: Plain weave is similar to row weave. The difference is that the warp of this woven mesh is thicker than the weft. The weft threads are closely spaced together to form conical or wedge-shaped openings |
| Features | The main feature is that the warp and weft wire diameters and density have a large contrast, so the mesh thickness, filtration accuracy and service life are significantly improved compared with the square hole mesh, and its filtration precision cannot be achieved by the square hole mesh. |
Application of stainless steel Dutch wire mesh
Dutch wire mesh has endless applications in industry, commerce and decoration. Filters, sieves, separators, etc., also have great uses in decorative nets, such as decorative exterior walls, which are beautiful.
Feature of the stainless steel Dutch wire mesh
Higher mechanical stability.
Finer openings for improved filtration efficiency and quality.
Thicker steel wire with higher tensile strength.
Parameters of stainless steel Dutch mesh
| Mesh (mesh/inch) Warp×Weft) |
Warp×Weft) mm |
Aperture Size (um) |
Effective section rate (%) |
Weight (kg/m2) |
Thickness (mm) |
| 7×,40 | 0,9×,0,71 | 347 | 14.3 | 6.65 | 2.32 |
| 7×,44 | 0,71×,0,63 | 319 | 14.2 | 5.55 | 1.97 |
| 8×,45 | 0,8×,0,6 | 310 | 15.5 | 5.7 | 2 |
| 8,5×,60 | 0,63×,0,45 | 296 | 20.3 | 4.16 | 1.53 |
| 8×,85 | 0,45×,0,315 | 275 | 27.3 | 2.73 | 1.08 |
| 10×,90 | 0,45×,0,28 | 249 | 29.2 | 2.57 | 1.01 |
| 10×,76 | 0,5×,0,355 | 248 | 21.8 | 3.24 | 1.21 |
| 12×,86 | 0,45×,0,315 | 211 | 20.9 | 2.93 | 1.08 |
| 12×,64 | 0,56×,0,4 | 16 | 3.89 | 1.36 | |
| 12,5×,76 | 0,45×,0,355 | 192 | 15.9 | 3.26 | 1.16 |
| 14×,100 | 0,40×,0,28 | 182 | 20.3 | 2.62 | 0.96 |
| 14×,110 | 0,355×,0,25 | 177 | 22.2 | 2.28 | 0.855 |
| 14×,76 | 0,45×,0,355 | 173 | 14.3 | 3.33 | 1.16 |
| 16×,100 | 0,4×,0,28 | 160 | 17.7 | 2.7 | 0.96 |
| 17×,120 | 0,355×,0,224 | 155 | 22.4 | 2.19 | 0.803 |
| 16×,120 | 0,28×,0,224 | 145 | 19.2 | 1.97 | 0.728 |
| 20×,140 | 0,315×,0,20 | 133 | 21.5 | 0.715 | |
| 20×,170 | 0,25×,0,16 | 130 | 28.9 | 1.56 | 0.57 |
| 20×,110 | 0,355×,0,25 | 126 | 15.3 | 2.47 | 0.855 |
| 22×,120 | 0,315×,0,224 | 115 | 15.5 | 2.2 | 0.763 |
| 25×,140 | 0,28×,0,2 | 100 | 15.2 | 1.96 | 0.68 |
| 24×,110 | 0,355×,0,25 | 97 | 11.3 | 2.6 | 0.855 |
| 28×,150 | 0,28×,0,18 | 92 | 15.9 | 1.87 | 0.64 |
| 30×,150 | 0,25×,0,18 | 82 | 13.5 | 1.79 | 0.61 |
| 30×,140 | 0,315×,0,20 | 77 | 11.4 | 2.21 | 0.715 |
| 35×,190 | 0,224×,0,14 | 74 | 16.8 | 1.47 | 0.504 |
| 35×,170 | 0,224×,0,16 | 69 | 12.8 | 1.62 | 0.544 |
| 40×,200 | 0,18×,0,135 | 63 | 15.4 | 1.24 | 0.43 |
| 45×,250 | 0,16×,0,11 | 56 | 15.2 | 1.11 | 0.384 |
| 50×,300 | 0,16×,0,09 | 55 | 20 | 0.98 | 0.34 |
| 60×,500 | 0,14×,0,055 | 51 | 34.1 | 0.7 | 0.252 |
| 50×,270 | 0,14×,0,10 | 50 | 15.2 | 0.98 | 0.34 |
| 70×,930 | 0,10×,0,03 | 30 | 36.2 | 0.39 | 0.16 |
| 65×,390 | 0,125×,0,071 | 42 | 19.1 | 0.78 | 0.267 |
| 60×,300 | 0,14×,0,09 | 41 | 14.1 | 0.96 | 0.32 |
| 80×,700 | 0,125×,0,04 | 40 | 38.1 | 0.6 | 0.205 |
| 60×,270 | 0,14×,0,1 | 39 | 11.2 | 1.03 | 0.34 |
| 77×,560 | 0,14×,0,05 | 38 | 27.5 | 0.74 | 0.24 |
| 80×,600 | 0,1×,0,045 | 37 | 29.8 | 0.53 | 0.19 |
| 70×,390 | 0,112×,0,071 | 16.3 | 0.74 | 0.254 | |
| 65×,750 | 0,10×,0,036 | 36 | 37.1 | 0.43 | 0.172 |
| 70×,340 | 0,125×,0,08 | 35 | 13.2 | 0.86 | 0.285 |
| 80×,430 | 0,125×,0,063 | 32 | 16.6 | 0.77 | 0.251 |
| 100×,1200 | 0,063×,0,023 | 23 | 37.6 | 0.27 | 0.109 |
| 118×,750 | 0,063×,0,036 | 21.5 | 0.38 | 0.135 |
