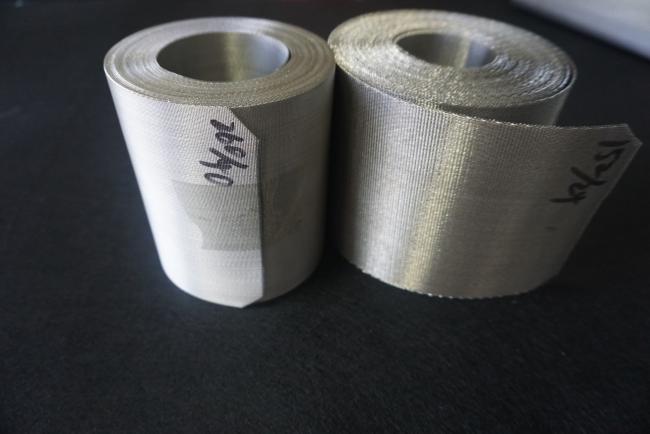

Food 304 Dutch 100*760 Stainless Steel Woven Wire Mesh For Filtering
Food 304 Stainless Steel Dutch Wire Mesh 100*760 Mesh For Filtering
Description
Stainless steel Dutch woven mesh material is divided 304 , 304L, 316 and 316L. Stainless steel has good wear resistance, heat resistance, acid resistance and corrosion resistance. The filter is also available in brass, mild steel, nickel, steel or other metallic materials and is also available upon request.
Feature
1. Trouble-free processing performance.
2. Easy to clean and has excellent durability.
3. In addition to excellent mechanical strength, it has higher speed stability than any other material.
4. Has extremely high physical and chemical resistance.
| Material | 304 stainless steel wire mesh |
| Weave | Plain weave |
| Mesh count | 20*270mesh-500*3500 mesh |
| Thread diameter | 0.25*0.2-0.025*0.015mm |
| Opening size | 3-119 micron |
| Color | silver |
| Brand name | R&K |
Specification
Plain weave Dutch mesh | ||||
Number | Mesh(warpxweft) | Wire diameter | Aperture | Weight |
32# | 8 x 62 | 0.63mm x 0.45mm | 300 | 5.42 |
40# | 10 x 79 | 0.50mm x 0.355mm | 250 | 3.16 |
48# | 12 x 64 | 0.58mm x 0.40mm | 280 | 2.9 |
55# | 14 x 88 | 0.40mm x 0.30mm | 180 | 2.54 |
76# | 19 x 140 | 0.315mm x 0.20mm | 140 | 1.88 |
80# | 20 x 300 | 0.35mm x 0.20mm | - | 3.6 |
95# | 24 x 110 | 0.355mm x 0.25mm | 120 | 2.45 |
100# | 25 x 140 | 0.28mm x 0.20mm | 100 | 1.95 |
120# | 30 x 150 | 0.25mm x 0.18mm | 80 | 1.68 |
140# | 35 x 175 | 0.224mm x 0.16mm | 71 | 1.52 |
160# | 40 x 200 | 0.20mm x 0.14mm | 60 | 1.40 |
180# | 45 x 250 | 0.16mm x 0.112mm | 56 | 1.09 |
200# | 50 x 250 | 0.14mm x 0.11mm | 53 | 1.04 |
220# | 55.5 x 280 | 0.14mm x 0.10mm | 50 | 0.92 |
240# | 65 x 330 | 0.11mm x 0.08mm | 36 | 0.71 |
280#(1) | 70 x 350 | 0.11mm x 0.08mm | 35 | 0.72 |
280#(2) | 70 x 385 | 0.11mm x 0.07mm | 32 | 0.75 |
300# | 78 x 700 | 0.11mm x 0.08mm | 30 | 1.39 |
315#(1) | 80 x 400 | 0.10mm x 0.065mm | 40 | 0.62 |
315#(2) | 80 x 600 | 0.10mm x 0.06mm | - | 0.74 |
315#(3) | 80 x 800 | 0.15mm x 0.04mm | - | 0.77 |
320# | 81 x 780 | 0.10mm x 0.07mm | 30 | 1.22 |
354# | 90 x 550 | 0.12mm x 0.05 | - | 0.667 |
Width:1m-1.6m | ||||
