Printed Circuit Board Handling Equipment PCB Turn Conveyor 90º Clockwise
Price:
Negotiable
MOQ:
1 unit
Delivery Time:
20 days
Brand:
Chimall
Product Description
Printed Circuit Board Handling Equipment PCB Turn Conveyor 90º Clockwise
Application
The 90° PCB Turn Conveyor is used for changing the direction of flow of a PCB assembly line. The PCB is transferred onto the built-in belt conveyor which turns either 90° clockwise or counter clockwise.
Features
- Controlled by Omron PLC.
- Easy operation by touch screen.
- By-pass mode selectable.
- Turning 90º Clockwise or Counter-Clockwise.
- Width adjustment system by hand crank.
- Sensor protection more safely.
- It’s controlled with motor, rotate smoothly and accurately.
- Tower light display for machine status.
- SMEMA compliant.
- CE certified.
Specifications
| Model | TC-350A-CT | TC-460A-CT |
| Power Supply | AC 110/220V ±10V, 50/60HZ | |
| Air Supply | 4 - 6 kgf/cm2 | |
| Fixed Rail | Front | |
| PCB Size | 460x(50 - 350)mm | 535x(50 - 460)mm |
| Transfer Height | 920 ±50mm | |
| Transfer Direction | left to right or right to left (option) | |
| Turning Direction | 90° clockwise or counter clockwise (option) | |

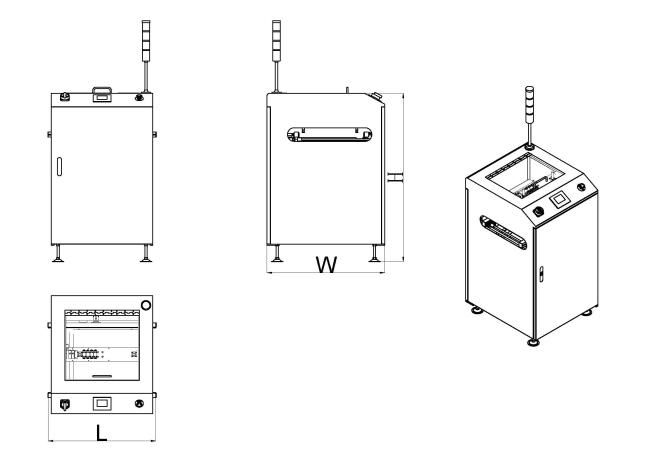

| Machine Dimension | 700x700x1250mm | 800x800x1250mm |
| Machine Weight | 190kg | 230kg |
* Other options available on request.
Option: T-type PCB Turn Conveyor
