IP54 Outdoor 8U / 12U Steel Wall Mount Small Network Rack ODM / OEM cabinet

8U/12U Outdoor Server Cabinet Data Entry Cabinet Outdoor Network Rack Cabinet

This is a 8U outdoor network cabinet.

This one is only suitable for those areas where rainfall is not very heavy, if you need a higher level of waterproof, you can refer to another product at the bottom of the page or consult the customer service staff for recommendations.

Able to withstand low temperature if you need. ( Add passivation treatment, special low temperature resistant spray powder, the price will be higher )

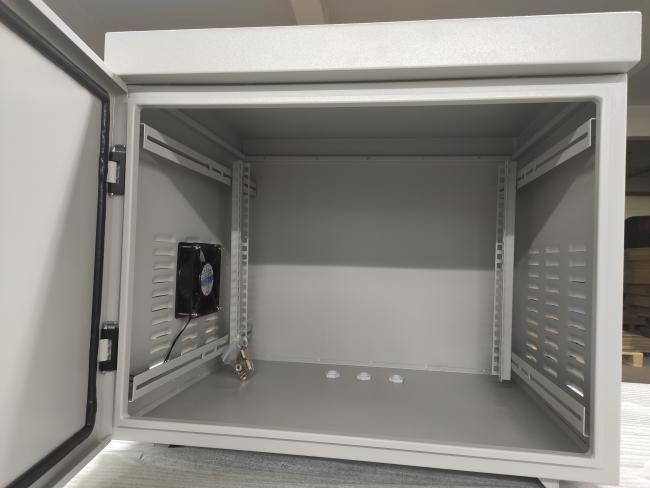

Inside view: Mounting rails (You can chose 2 or 4 )

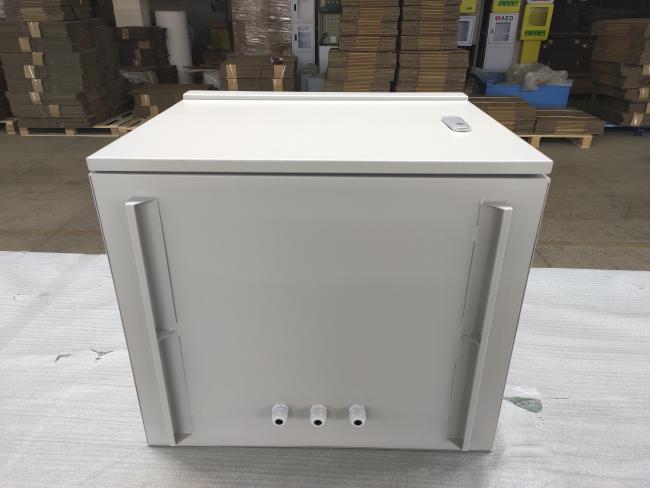

Bottom view: 3 glands and 2 strenthen base

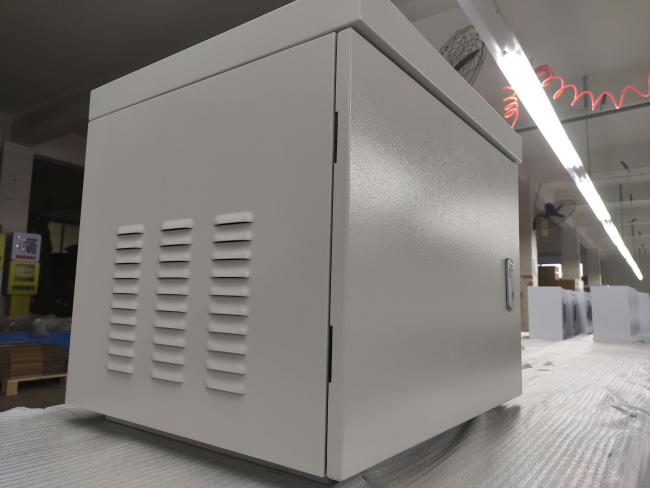

Side view :  Vents and blinds

Details

8RU Vented Outdoor Server Rack, IP45 Vented

The outdoor server rack also has a fan kit included

Supplied fully assembled

Lockable front door

Front door has 130 degrees of movement, swinging from left to right

Water and dust proof polyurethane door joint strip

Adjustable 19” mounting rails front and rear

Front door rubber seal

SPECIFICATIONS

Dimensions - External (mm): 570(w) x 500(d) x 500(h)

Colour: Grey, RAL 7035

Protection Rank : IP54

RU Size: 8RU

Material: Cold rolled steel

Surface Finish: Degreasing, pickling, phosphoric wash, cleaning, and powder coated

Load Capacity: 40KG
