MACGREGOR V150 HAMWORTHY V150 Tubenest Assembly Main Air Compressor In Ship
Price:
Negotiable
MOQ:
1
Delivery Time:
1-10 working days according to the parts of different specifications
Brand:
Silk Road
Product Description

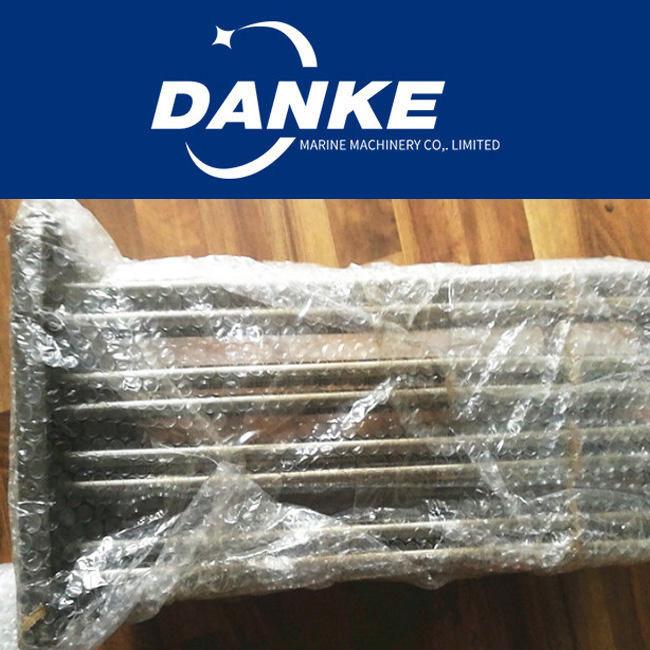

TUBENEST ASSEMBLY MAC MACGREGOR V150 HAMWORTHY V150 MAIN AIR COMPRESSOR
Specifications:
| Brand | MACGREGOR |
| Type | V150 |
| Delivery Time | 1-10 Working Days According To The Parts Of Different Specifications |
| EXW | Shanghai Of China |
| MOQ | 1 |
| Price | Negotiable |
| Payment term | T/T,L/C |
| Supply Ability | 500 Pcs Per Month |
| Packaging Detials | Wooden Package, Plywood Case, Carton, Neutral Packing |
| Place of Origin | China Original |
MAIN AIR COMPRESSOR
HAMWORTHY MODEL V150
PRESS:29.41bair,CAP:105m³,RPM:1800
TUBENEST ASSY P/N 91
1, PIN SPRING TENSION P/N 3
2, BEARING TAPER ROLLER (MAIN NON DRIVE END) P/N 4
3, BEARING TAPER ROLLER (MAIN DRIVE END) P/N 5
4, OIL SEAL P/N 6
5, O RING (ADJUSTING SLEEVE TO BEARING & CRANKSHAFT) P/N 7
6, SPACER-CONNECTING ROD/SHAFT P/N 18
7, CLAMPING WASHER-C/SHAFTCONN.ROD P/N 22
8, SET SCREW P/N 23
9, TAB WASHER P/N 24
10, BEARING-BIG END CYLINDRICAL ROLLER 1P/N 6
11, CONNECTING ROD (1ST STAGE) P/N 15
12, BEARING-SMALL END NEEDLE ROLLER P/N 17
13, GUDGEON PIN (FIRST STAGE) P/N 40
14, HEXAGON SOCKET SET SCREW P/N 41
15, LOCK NUT P/N 42
16, PISTON (FIRST STAGE) P/N 35
17, PISTON RING S.O.C P/N 36
18, PISTON RING TAPER FACED P/N 37
19, PISTON RING BARREL FACED P/N 38
20, CONNECTING ROD (2ND STAGE) P/N 19
21, BEARING-BIG END CYLINDRICAL ROLLER P/N 20
22, BEARING- SMALL END NEEDLE ROLLER P/N 21
23, GUDGEON PIN (SECOND STAGE) P/N 64
24, SOCKET SET SCREW P/N 65
25, PISTON (SECOND STAGE) P/N 60
26, PISTON RING S.O.C P/N 61
27, PISTON RING TAPPER FACED P/N 62
28, PISTON RING BARREL FACED P/N 63
29, O RING (SECOND STAGE VALVE CAGE BOTTOM GROOVE TO CYLINDER P/N 72
30, O RING (SECOND STAGE CONCENTRIC VALVE TOP FACE TO VALVE CAGE) P/N 77
31, ANTI-EXTRUSION RING (V375 ONLY) P/N 81
32, O RING (SECOND STAGE CONCENTRIC VALVE OUTER GROOVE TO CYLINDER) P/N 76
33, PRESSURE GAUGE (PANEL MOUNT) 0-10 BAR P/N 284
34, PRESSURE GAUGE (PANEL MOUNTH) 0-60 BAR P/N 285
35, Gasket (tubenest to cooler box) P/N 92
36, BOLT/ADJUSTING SCREW P/N 94
