Car PC 19mm Anti Vandal Push Button Switch Ring Symbol Yellow Orange LED 220V
Stainless Steel 19mm LED Anti Vandal Push Button Switch Ring symbol yellow orange led 220V Car PC switches
Product Description
- The push button is a type of switch that controls an action in a machine or some type of process. We use stainless steel, or brass or zin-al alloy, sometimes plastic. They are popular in many equipments. Some equipments need Latching ones, others need momentary ones.
- The illuminated pushbutton swithes are High-grade appearance and nice touch feeling, which is made of 304 stainless steel. If you need other materials please feel free to contact us.
- Latching/Self-locking Switch: Press the button switch, it works ; Press the button again ,switch stops working .
- Momentary Switch: Press the button switch, it works ; Press the button again ,switch stops working .
Product Specification
| Model Number | LA19F-11E/S |
| Mounting Hole | 19mm |
| Max.Switch Rating | Ith : 5A Ui : 250V AC |
| Material | Body Material : Stainless Steel |
| Button Material :Stainless Steel | |
| Contact Material : Silver Alloy | |
| Base Material : PBT | |
| The Front Shape | Flat Round Head |
| Terminal Type | Pin Termlmal( 2.8 * 0.5 MM ) |
| Switch Operation | Momentary or Latching are available |
| Contact Configuration | 1NO + 1NC or 2NO + 2NC |
| Mounting panel thickness | 1-10 mm |
| Operation Distance | About 3.1 mm |
| LED Parameters | Led Type : Ring Symbol |
| LED Color : Red,Green,Yellow,Orange,Blue,White,Purple or Double color mixing all Can be customized. |
|
| Led Voltage: 3V 6V 12V 24V 36V 110V 220V 360V for choose. |
|
| LED Life : More than 40,000 hours | |
| Protection Level | IP67 |
| Operating Temp |
-20℃～+55℃ |

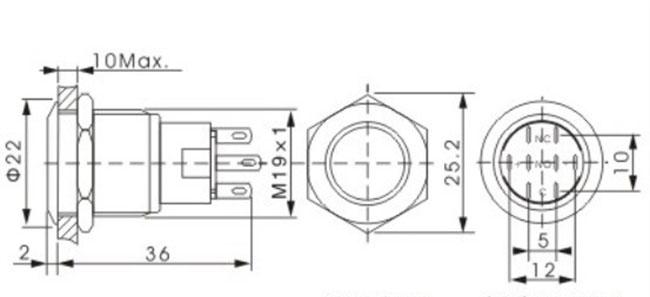

Size
