25mm Latching Waterproof Piezo Touch Switch Stainless Steel For Car Marine
25mm Latching Waterproof Piezo Touch Switch Stainless Steel For Car Marine With Ring Led
Quick Description:
——latching/Self-locking button: Press the power on, release the hand, and keep the button still (light on)； Press the button again to make it pop upand disconnect the power (light off).
——the wire length can be customized ,please inform us by message.
Product Details
| size | 22mm |
| head type | flat round head |
| terminal type | 4 wires of 0.22 square,30mm |
| ip degree | IP68 IEC529 |
| Max.Current | 200mA |
| contact resistance | ≤ 50mΩ |
| Operation Temperature | -40℃～+70℃ |
| LED type | ring symbol |
| LED voltage | default 12v(acceptab;e customization) |
| LED life | more than 40000 hours |
| LED color | defauft blue(red yellow green white,etc) |

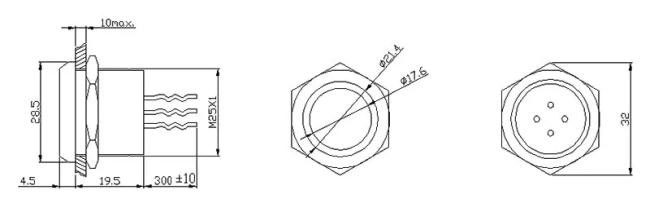

Product Size:
LED color:
High bright solid color LED light, beautiful not dazzling. Built-in buck resistor. Customized LED light sign. 7 colors optional,
can be customized Bi-colors, Tri-colors.
F&Q:
1:Q: What is Momentary function?
A: When you push switch and then move your finger, the actuator will back to the original position.
2:Q:How about your Product Quality?
A:our products quality is good and most of all products approval of CE and ROHS. After you use it, you will know more understanding for our quality.
3:Q: What kind of payment do you accept ? Can I pay RMB ?
A: We accept T/T(Wire transfer),Western Union and Paypal,credit card. Please be sure that we can receive the same amount of the Invoice. And you can pay money In RMB. No problem.
Transport&Packing:
