Ip68 Waterproof Piezo Switch Touch 24VDC Stainless Steel 316l 4 Wires Momentary
Ip68 Waterproof Stainless Steel Piezo Touch Switch 316l 4 Wires Momentary With Ring Led
Quick Details:
——Momentary switches are switches which only remain in their on state as long as they’re being actuated (pressed, held, etc.).
——the wire length can be customized ,please inform us by message.
——LED Color : Default Green(Or Red / Blue / Yellow / Purple / White / Orange pls inform us by message )
Product Details
| size | 22mm |
| head type | flat round head |
| terminal type | 4 wires of 0.22 square,30mm |
| Max.Voltage | 24VAC/AC |
| Max.Current | 200mA |
| contact resistance | ≤ 50mΩ |
| Operation Temperature | -40℃～+70℃ |
| LED type | ring symbol |
| LED voltage | LED Voltage : Default 12V (or 3V / 6V / 24V , pls inform us by message ) |
| LED life | more than 40000 hours |
| LED color | Default Green(Or Red / Blue / Yellow / Purple / White / Orange pls inform us by message ) |

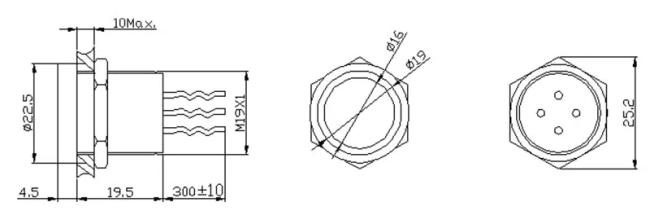

Product Size:
LED color:
F&Q:
——Q : Can you make customized products and customized packing?
A: Yes.We made a lot of customized products for our customer before.And we made many moulds for our customers alread.About customized packing,we can put your Logo or other info on the packing.There is no problem.Just have to point out that ,it will cause some additional cost.
——Q:How long is your products Warranty Period?
A: Generally, 1~2 years(After shipment date).
——Q:Do you have a catalog? Can you send me the catalog to me for checking them ?
A: Yes , We have product catalog.Please contact us on line or send an Email for sending the catalog.
Packing:
- We have 50 pieces/box and 25 pieces/box of packaging, using foam box to protect each product, effectively avoid the damage caused by direct friction between products.
- Each of our products will go through strict testing before they leave the factory to ensure that the products reach the customer is in good condition.If you have any problem with the products you receive, please contact us immediately and we will deal with it properly.
