0.8mm 3784 Woven Roving Fiberglass Fabric Fire Protection Welding Fire Blanket Rolls
0.8mm 3784 Woven Roving Fiberglass Fabric Fire Protection Welding Fire Blanket Rolls
1. Product Description:
Among reinforcements, fiberglass fabrics remain the most commonly used reinforcement in today's composites industry. Normally, Glass Fiber Fabric is the least expensive among reinforcements and offer ease in handling. When they combined with resin and silicone rubber, deliver composite parts with excellent strength, low weight, and great cosmetics.
To change the weaving structure with warp yarn as well as weft yarn, the primarily of 3784 is satin weave. At the same time, it has own unique weight, strength and fabric characteristics.
2. Table 1: 3784 Product Description
| 3784 | ||
| Item Model | 3784 Fiberglass Fabric | |
| Description | Woven Fiberglass Cloth | |
| Weave Structure | 8H Satin Weave | |
| Weight | 850gsm | |
| Thickness | 0.8mm | |
| Yarn Type | Warp | EC9 33 4*2 |
| Weft | EC9 33 4*2 | |
| Thread Count | Warp | 18±1 ends/cm |
| Weft | 14±1 picks/cm | |
| Break Strength | Warp | 7500 N/5cm |
| Weft | 5600 N/5cm | |
| LOI | < 0.4% | |
| Working Temperature | ≤550℃ | |
3. Product Features:
High performance in chemical
Lightweight and high strength
Satin weave, even thickness and low fuzz
Fire resistance and heat resistance, A Classification
Easily impregnated with resin and silicone rubber
Flexible, Soft, easy to be fabricated
E-glass Fabric has excellent electricity insulation property
4. Application:
3784 fiberglass cloth is a kind of base materials for Silicone, PU coting. This kind of material is mainly used for fire blankets and welding barriers. At the same time, 3784 is also a good thermal insulation, due to the heat resistance is 550 degrees.

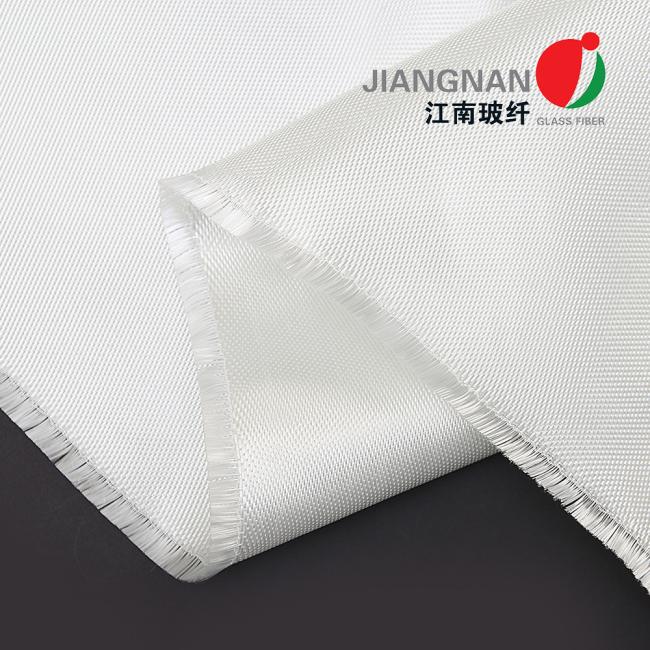

5. Detail images for 3784
6 . Other Related Fireproof Fabric Series Products with different thickness
| Fireproof Fabric Series | |||||
NO. |
Style |
Width Item,cm |
Weight,g/m2 |
Thickness,mm |
Weaving type |
| 1 | 7781 | 107 127 157 207 254 | 300.0±8.0 | 0.222 | 8HS |
| 2 | 7581 | 107 127 157 207 254 | 300.0±8.0 | 0.222 | 8HS |
| 3 | 3732 | 107 127 157 207 254 | 425.0±8.0 | 0.312 | Twill |
| 4 | 332L | 107 127 157 207 254 | 416.6±8.0 | 0.287 | 4HS |
| 5 | 332 | 107 127 157 207 254 | 427.0±8.0 | 0.343 | 4HS |
| 6 | 0620 | 107 127 157 207 254 | 640.0±20.0 | 0.385 | 8HS |
| 7 | 3784 | 107 127 157 207 254 | 870.0±10.0 | 0.670 | 8HS |
| 8 | 3786 | 107 127 157 207 254 | 1450.0±10.0 | 0.930 | 12HS |
| 9 | 3788 | 107 127 157 207 254 | 1650.0±20.0 | 1.230 | 12HS |
7. FAQ:
Q: 1. Can I have a sample order?
A: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.
Q: 2. What is the lead time?
A:Sample needs 1-3 days, mass production needs 10-15 days, also according to the order volume.
Q: 3. Do you have any MOQ limit?
A: Our MOQ is 1000pcs for both formal raw material and processing parts.
Q: 4. Can you accept mixed batch of different products?
A: Yes, we are support different product mix wholesale, no limit of raw materials and mechanical parts, and color specifications, etc
Q: 5. How do you ship the goods and how long does it take arrive?
A: We usually ship by DHL, UPS, FedEx or TNT. It usually takes 3-5 days to arrive.
Q: 6. Can you provide container packed in wooden cases if I order more products?
A: Yes, we are can provide a set of wooden packaging products, but only in big quantity.
Q: 7. We want to visit your company?
A: No problem, we are a production and processing enterprises, look forward to your arrival and we will lead you to visit our factory and processing
