Heavy Satin Fiberglass 25.4 oz/sq yd style 3784, 38" 3 yards
Heavy Satin Fiberglass 25.4 oz/sq yd style 3784, 38" 3 yards
1. Product Describtion
Changshu Jiangnan Fiberglass Co is the professional manufacturer of high temperature insulation fabrics in China since 2009 year. These speciality fabric provide temperature protection from 250℃ -1000℃.The main product including fiberglass cloth,texturized fiberglass cloth,silicone coated fiberglass cloth,PU coated fiberglass cloth,acrylic coated fiberglass cloth,vermiculite coated fiberglass cloth,aluminum foil laminated fiberglass cloth,silica cloth,PTFE coated fiberglass cloth,aramid fabric ,etc.
2. Table 1: 3784 Product Description
| Characteristic | 3784 | ||
| Weave | 8HS SATIN | ||
| Yarn | Warp | EC9 33 4×2 | ECG 150 4/2 |
| (text) | Weft | EC9 33 4×2 | ECG 150 4/2 |
| Width | 101.6±2cm | 40±0.75inch | |
| 121.9±2cm | 48±0.75inch | ||
| 152.4±2.54cm | 60±1inch | ||
| Thickness | 0.8±0.08mm | 0.031±0.0031inch | |
| Weight | 880±44g/m² | 26±1.30oz/yd² | |
| Thread | Warp | 18±1.8/cm | 45.7±4.5/inch |
| count | Weft | 13± 1.3/cm | 33± 3.3/inch |
| Tensile | Warp | 8000N/5cm | 888 ibs/inch |
| strength | Weft | 6000N/5cm | 666 ibs/inch |
| min | |||
| L.O.I% | 0.5 | ||
| Service Temperature | 550°C | ||
3. Product Features:
Fiberglass fabric is made of continuous fiberglass yarns, It has excellent electric insulating, corrosion resistance,
high temperature resistance and good resin impregnation, The surface is smoother than texturized
fiberglass fabric.It is widely used in the thermal insulating,heat protection,fireproof,economize energy
sources,labor protection and can be used as base materials for coating

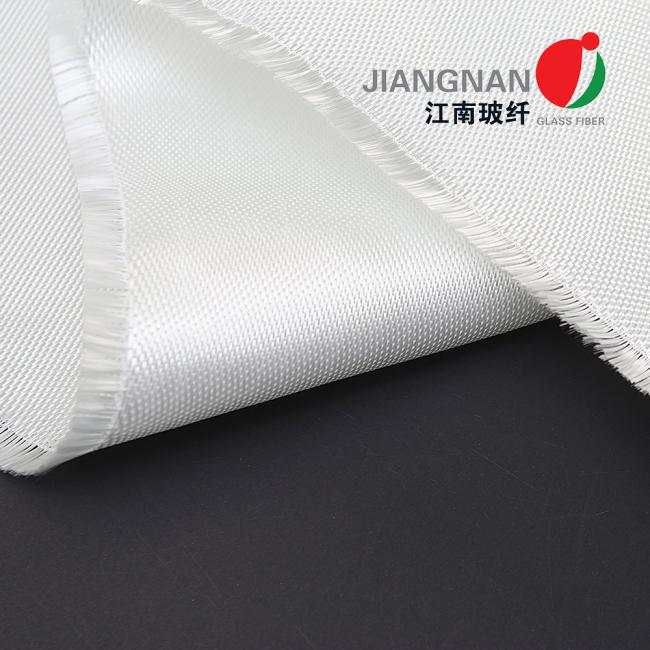

4. More Detail Images
5. Packing:
width :100-200cm
Roll length: 40-100m
inner packing: plastic film
Outer packing: carton, or pallet
6 . Other Related Fireproof Fabric Series Products with different thickness
| Fireproof Fabric Series | |||||
NO. |
Style |
Width Item,cm |
Weight,g/m2 |
Thickness,mm |
Weaving type |
| 1 | 7781 | 107 127 157 207 254 | 300.0±8.0 | 0.222 | 8HS |
| 2 | 7581 | 107 127 157 207 254 | 300.0±8.0 | 0.222 | 8HS |
| 3 | 3732 | 107 127 157 207 254 | 425.0±8.0 | 0.312 | Twill |
| 4 | 332L | 107 127 157 207 254 | 416.6±8.0 | 0.287 | 4HS |
| 5 | 332 | 107 127 157 207 254 | 427.0±8.0 | 0.343 | 4HS |
| 6 | 0620 | 107 127 157 207 254 | 640.0±20.0 | 0.385 | 8HS |
| 7 | 3784 | 107 127 157 207 254 | 870.0±10.0 | 0.670 | 8HS |
| 8 | 3786 | 107 127 157 207 254 | 1450.0±10.0 | 0.930 | 12HS |
| 9 | 3788 | 107 127 157 207 254 | 1650.0±20.0 | 1.230 | 12HS |
