Composite Aluminum Foil Laminated Fiberglass Fabric Alkali Free
Aluminum Foil Fiberglass Composite Fabric Used For Hose Solver Heat Reisitant Fabric
1. Description:
Jiangnan adopts advanced composite processing, alkali-free glass fiber as the base fabric, and special refractory adhesive. The most popular use is glass fiber filament fabric laminated with aluminum foil with a water-based adhesive, and textured glass fiber fabric with acrylic adhesive laminated with aluminum foil. Water-based adhesives have better flexibility and performance at higher temperatures, but less viscous, while acrylic adhesives have better viscosity and stiffness, especially for bulked glass fiber fabrics with uneven surfaces or need sewing, acrylic adhesive is a better choice.
Temperature resistant:
Aluminum foil coating is best for static applications and working temperatures up to 650°F / 343°C, this fabric will withstand short duration exposure up to 1115°F / 600°C and up to 3000°F / 1650°C for very short durations. The aluminum coating melts at 1220°F / 660°C.
2. Table 1: Data Sheet of Basic Fiberglass Cloth
| 3732 Fiberglass Basic Cloth | ||
| Item Model | 3732 Fiberglass Fabric | |
| Description | C-Glass/E-glass Industrial Fabric | |
| Weave Structure | 1/3 Twill Weave | |
| Weight | 430gsm | |
| Thickness | 0.43mm | |
| Yarn Type | Warp | G37 1/0 0.7OZ |
| Weft | G37 1/0 0.7OZ | |
| Thread Count | Warp | 18±1 ends/cm |
| Weft | 12±1 picks/cm | |
| Break Strength | Warp | 6000 N/5cm |
| Weft | 4500 N/5cm | |
| LOI | < 5% | |
| Working Temperature | ≤550℃ | |
3. Table 2: Data Sheet of Final Product Al-3732
| AL3732 | |||
| Item Model | Aluminum Foil Fiberglass Fabric | Test Standard | |
| Weave Structure | 1/3 Twill Weave | ||
| Aluminum Foil Thickness | 18μm | ||
| Weight | 460gsm | ASTM D3776-96 | |
| Thickness | 0.45mm | ASTM D1777-96 | |
| Thread Count | Warp | 18±1 ends/cm | GB/T 7689.2-2013 |
| Weft | 12±1 picks/cm | ||
| Break Strength | Warp | 6000 N/5cm | GB/T 7689.5-2013 |
| Weft | 4500 N/5cm | ||
| Color | Silver | ||
| Working Temperature | ≤300℃ | ||
| Flame Resistace | Non-Combustible | ||
| Advantages | Radiant Thermal Reflective | ||
4. Is Aluminum Foil Cloth a good Refelctor? What is the Aluminum Foil Fiberglass Cloth Application?
- One side coated with Aluminum foil. Protection from intense radiant heat.
- Reflects more than 95% of the radiant heat that contacts its surface
- Excellent radiant heat protection from sources
5. Product Features:
- Strong Corrosion Resistance
- Less Water Vapor Permeability
- High Tensile Strength
- Stiffer and Smoother Surface
- Less Chances of Damage to the Aluminum Foil Surface
- Light Radiation Resistance

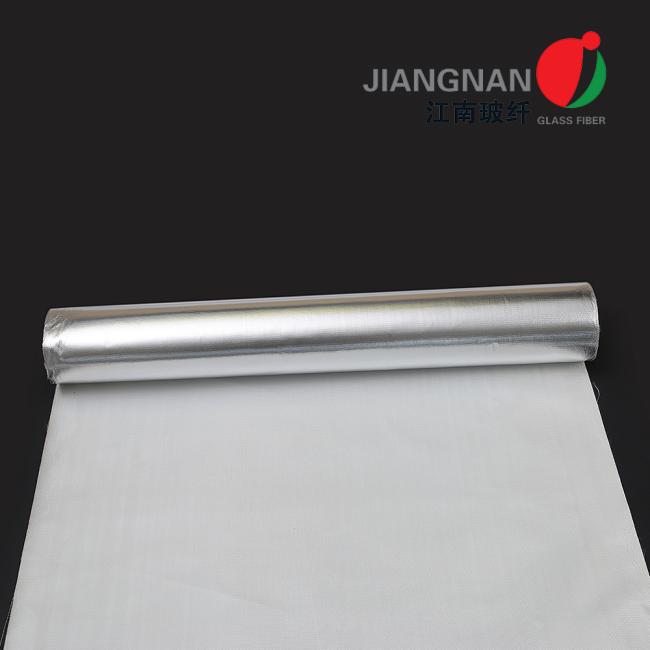

6. Detail images for Aluminum Foil Cloth
7: Other Related Products
| Style No: | Weight | Thickness | ||
| g/m2 | Oz/yd | mm | inch | |
| AL75 | 75 | 2.21 | 0.1 | 0.00 |
| AL7628 | 200 | 5.9 | 0.2 | 0.01 |
| AL3732 | 450 | 13.27 | 0.42 | 0.02 |
| ALFW600 | 600 | 17.7 | 0.6 | 0.02 |
| AL2025 | 600 | 17.7 | 0.6 | 0.02 |
|
Other thickness and weight can also be customized according to your Requirement
75<Weight<2000g
0.1mm<Thickness<3mm |
||||
