Aluminum Foil Laminated Coated Fiberglass Cloth Heat Resistant
High Quality Heat Resistant Aluminum Foil Laminated Coated Fiberglass Cloth
1. Description:
The aluminum foil glass fiber cloth produced by Jiangnan is made of fiberglass fabric laminated an aluminum foil. It has a smooth surface, high strength, gas-proof&water-proof and weather resistance. This kind of material is suitable for wide variety of applications, it can be used as insulation and vapor barrier layer for numerous insulation materials, with good aging resistance, and corrosion resistance. Our facings are designed with proprietary flame retardant chemistry to meet demanding fire codes and Chinese Government standards.
Temperature resistant:
Aluminum foil coating is best for static applications and working temperatures up to 650°F / 343°C, this fabric will withstand short duration exposure up to 1115°F / 600°C and up to 3000°F / 1650°C for very short durations. The aluminum coating melts at 1220°F / 660°C.
2. Table 2: Data Sheet of Final Product Al-3732
| SPECIFICATIONS | |
| Aluminum Foil Thickness | 18 Mirac |
| Adhesive | F.R GLUE |
| Fiberglass Cloth | 430GSM |
| Width | 1.2M |
| Length | 50M |
| Thickness | 0.45MM |
| CORE I.D. | 3”(76MM+/-1) |
| AL-3732 | Aluminum Foil | |
| Weaving | 1/3 Twill | 1/3 Twill |
| Basic Fabric Weight | 430g/m2± 5% | 12.72 oz/yd2± 5% |
| Aluminum Thickness mm | 18 Micron | |
| Total Weight | 470g/m2± 5% | 13.9 oz/yd2± 5% |
| Basic Fabric Working Temperature | 550 °C | 1000°F |
| Aluminum Coating Fabric Working Temperature | 180 °C | 356°F |
| Normal Width | 1, 1.2 & 1.5 meters | 40, 48 & 60 Inches |
3. Is Aluminum Foil Cloth a good Refelctor? What is the Aluminum Foil Fiberglass Cloth Application?
The aluminized fiberglass cloth series is a perfect insulation material composited by aluminum and various glass fibers. It can also be composited with aramid, carbon fiber, flame-retardant cotton, aluminum silicon ceramic cloth, silicon cloth, pearl cotton, non-woven fabrics, etc.
4. Product Features:
It has many excellent characteristics such as flame resistance, corrosion resistance, stable structure, heat insulation, minimal elongation and shrinkage, and high strength. The new material products have covered electrical appliances, electronics, transportation, chemicals, construction engineering, heat insulation, sound absorption, fire protection, environmental protection and other fields.

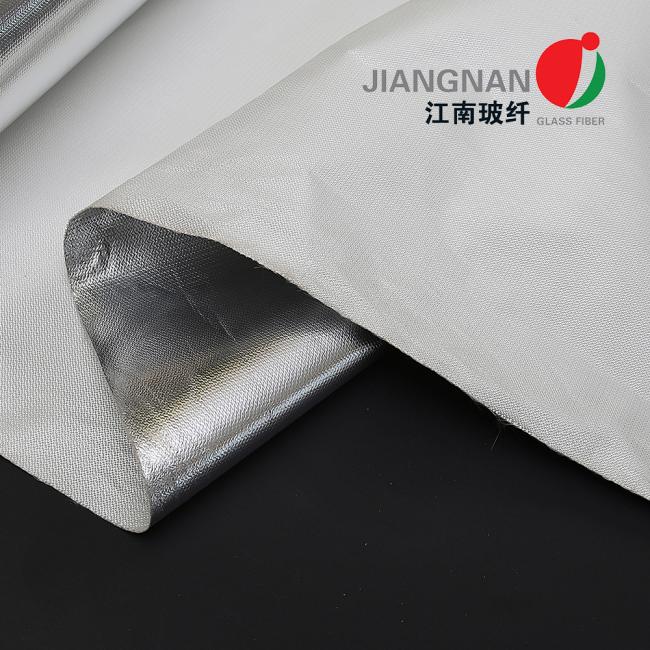

5. Detail images for Aluminum Foil Cloth
6: Other Related Products
| Style No: | Weight | Thickness | ||
| g/m2 | Oz/yd | mm | inch | |
| AL75 | 75 | 2.21 | 0.1 | 0.00 |
| AL7628 | 200 | 5.9 | 0.2 | 0.01 |
| AL3732 | 450 | 13.27 | 0.42 | 0.02 |
| ALFW600 | 600 | 17.7 | 0.6 | 0.02 |
| AL2025 | 600 | 17.7 | 0.6 | 0.02 |
|
Other thickness and weight can also be customized according to your Requirement
75<Weight<2000g
0.1mm<Thickness<3mm |
||||
