1000-2000mm Grey PU Coated Fiberglass Fabric Used For Fire And Smoke Control System

1. Description:

Jiangnan PU-coated fiberglass cloth is made of filament fiberglass cloth or stretched fiberglass cloth coated with PU resin. Aluminum powder can be added to increase its fire resistance and heat reflection performance. Fiberglass fabric is usually dusted with dust, and when a sharp object is inserted, even human fingers can easily spread out. After cutting, the uncoated glass fiber fabric will be a burr scattered with many small fibers. These small glass fibers have certain damage to the human body. With the advantages of PU coating, these problems will be solved. And PU coating also brings higher tensile strength, tear strength, tensile modulus, and higher surface wear resistance. It also makes the fabric fireproof, waterproof, good chemical resistance, smokeproof, fireproof, and easy to cut and sew. It is 430g/m2 and 0.43mm thick. When coated with 15-20g/m2 grey PU coating on each side, the total weight per unit can be 460gsm, and thickness will be 0.45mm.

2. Table 1: TDS for Basic Cloth

3. Table 2: Pu Coated Fiberglass Cloth Information

4. Properties:

15-20g/m2 PU coating on both sides

Pu coating can be born 1100℃ instantaneously

Anti-corrosion, anti-abrasion.

Good heat resistance, electric resistance

Working temperature up to 260°C

Low thermal conductivity coefficient

5. Application:

It is widely used in various heat preservation and heat insulation. Many industries have pipe connections, non-metallic compensators, and expansion joints. Furnace curtain, electric welding curtain, electric welding blanket, fire blanket. Protective air cargo cover; noise control barrier. Gaskets and packaging for power plants, printing, chemical, and rubber industries.

6. Much More Choice for PU coating:

According to different usage scenarios, we also provide blended fibers fabric and other coated choices.

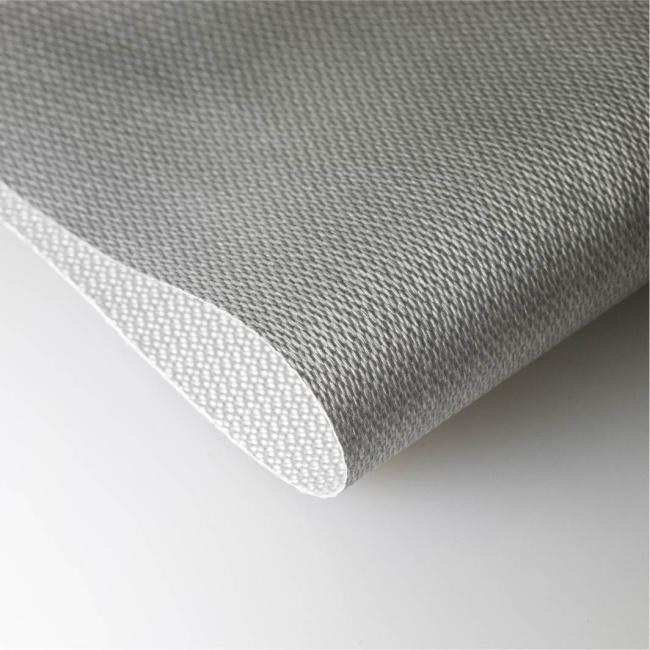

7. Detail Images for PU Coated Fiberglass Cloth
