Cisco CWDM-SFP10G-1490-80 Compatible 10G CWDM SFP+ 1490nm 80km Transceiver Module

GVD-CW-SFP10G80-49 is a very compact 10Gb/s optical transceiver module for serial optical communication applications at 10Gb/s. The SFP+-10GB-LR converts a 10Gb/s serial electrical data stream to 10Gb/s optical output signal and a 10Gb/s optical input signal to 10Gb/s serial electrical data streams. The high speed 10Gb/s electrical interface is fully compliant with SFI specification.

The high performance 1490nm transmitter and high sensitivity PIN receiver provide superior performance for Ethernet applications at up to 10km links.

The SFP+ Module compliants with SFF-8431, SFF-8432 and IEEE 802.3ae 10GBASE-LR. Digital diagnostics functions are available via a 2-wire serial interface, as specified in SFF-8472.

The fully SFP compliant form factor provides hot pluggability, easy optical port upgrades and low EMI emission.

Features

• Operating data rate up to 10Gb/s

• 18 Wavelength CWDM DFB LD Transmitter from 1270nm to 1610nm, with step 20nm

• Very low EMI and excellent ESD protection

• 1490nm Wavelength
• Singlemode Fiber (SMF)
• Single 3.3V Power supply and TTL logic Interface
• Up to 80km Reach
• APD High Sensitivity Receiver DDM

• Duplex LC Connector Interface

• Hot Pluggable SFP footprint

• 10GBASE-CWDM 10G Ethernet

• SONET SDH OC-192/STM-64

​Our CWDM product series

"xxxx" meaning the wavelengths , example"xxxx=1310"

Advantages

• High Quality with ISO9001 , TUV , CE , FCC , UL and RoHS certificates

• Fully product line

• 100%tested
• 3 year Warranty
• very fast delivery

Applications

• 10G Channels

• Networking , Storage , Telecommunications

• Hub , Switches , Routers , Servers , Network Interface Card (NICs)`

• Other 10Gbps Networking Optical links

OEM and ODM

OEM / ODM order is available

we can supply products according to your requirements, and design products label for your company .

Shipment

International Express DHL , SF , FedEx , TNT ,  EMS , UPS and so on . It takes 3-7 days.

Guarantee

We promise all the advertised optical transceivers are brand new with new components and parts all new materials . All the optical transceivers have been through functional test and aging test. We provide 3 years warranty for all the optical transceivers from the date of shipment.

What we focus

We focus on all kinds of compatible optical transceiver modules , including GBIC , SFP , SFP+ , XENPAK , X2 , XFP , BIDI , CWDM,DWDM and other special transceiver modules . Our products are compatible with Cisco , Ciena , H3C , Extreme , HP , Foundry , Avaya , D-link , Alcatel , Riverstone , Enterasys , Netgear , Nortel , Juniper , Ruijie , Zyxel , Huawei , etc .

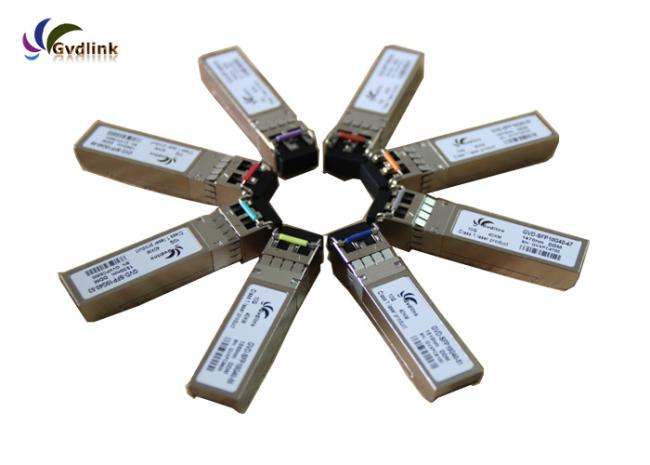

Our product line show
