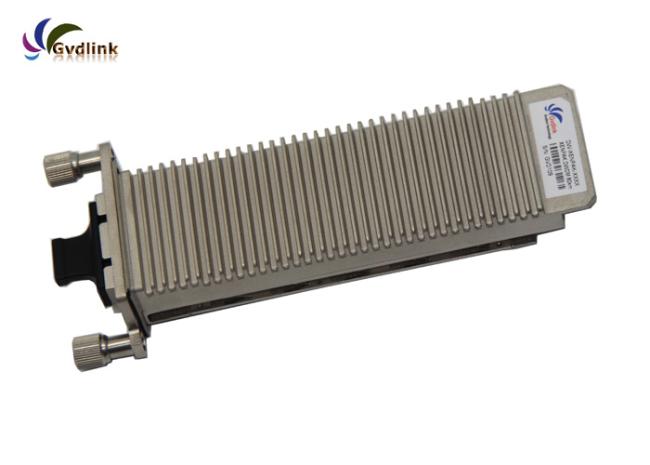

C Band 100GHz Xenpak Module DWDM-XENPAK-Xx.Xx Compatible
DWDM-XENPAK-xx.xx Compatible 10G DWDM XENPAK 100GHz C-band ITU-T grid wavelengths 80km Transceiver
The Xenpak units provided by Gvdlink are the full series of Telecom quality, high performance 10Gbase transceivers - the cost effective 10G Pluggable Modules for optical data communications according to Multi-Sourcing Agreement (MSA). The transceivers allow 80km 10G Ethernet, and are 100% compatible to: Cisco, HP, Juniper, Nortel, Brocade, Ciena, Dell, Extreme, D-link, Linksys... with bother dual fiber and CWDM/DWDM solutions. They are fully compliant with RoHS. The modules have been used for various fiber optic networks such as backbone network, wireless network, and enterprise/campus networks for multiple years with extremely low return rate and supper reputation.
Features
- XENPAK DWDM MSA Compliant
- SONET SDH OC-192 / STM-64
- Wavelength selectable to C-band ITU-T grid wavelengths
- Suitable for use in 100GHz channel spacing DWDM systems
- DWDM-rated EML transmitter and APD receiver
- Link length up to 80km
- with CDR function
- Cold Start up Wavelength Compliance
- Low Power Dissipation 3.5W Maximum
- -20ºC to 70ºC Operating Case Temperature
- RoHS compliant and lead free
Quick View
| Part Number | GVD-DW-XENPAK-xx.xx |
| Datarate | 10Gb/ps |
| Channel | optional |
| Distance | 80km |
| Transmitter | Cool EML |
| Receiver | APD |
| Media | SMF |
| DDM/DOM | YES |
| Connector | LC Dual |
| Application |
Datacom 10G Ethernet 10x FC Telcom OC192/STM-64 |
| Operating Temperature | 20℃~ +70℃ |
| Voltage Supply | 3.3V |
| Certification | CE / FCC / RoHS / TUV / UL |
| Brand | CISCO , Gvdlink , OEM |
Our X2 DWDM product series
| Product catagorys | Model | Distance | Footprint | temprature |
| DWDM XENPAK 10G ER | DWDM-XENPAK40-xx.xx | 40km | DWDM XENPAK | -20~70 C |
| DWDM XENPAK 10G | DWDM-XENPAK-xx.xx | 80km | DWDM XENPAK | -20~70 C |
" xx.xx " meaning the wavelengths , Such as " xx.xx=60.61 "
Advantages
- High Quality with ISO9001 , CE , TUV , FCC and RoHS certificates
- Fully product line
- 100%tested
- 3 year Warranty
- very fast delivery
Applications
-
XENPAK DWDM SONET OC-192 & SDH STM 64
-
80km 10G Fiber Channel
-
Other DWDM Networks
