100G 10m QSFP28 AOC Cable QSFP-100G-AOC10M For Huawei 02311KNQ
10m QSFP-100G-AOC10M Compatible 100G QSFP28 AOC Cable for Huawei 02311KNQ
Description

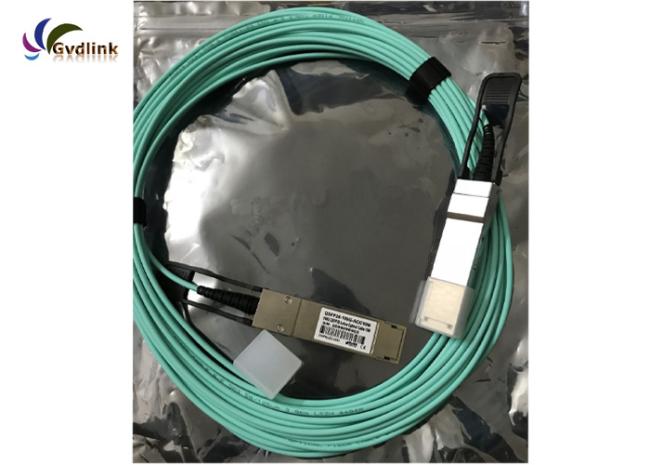

Gvdlink 100G QSFP28 AOC is an assembly of 4 full-duplex lanes and each lane is capable of transmitting data at rates up to 25.78Gb/s, providing an aggregated rate of 103Gb/s. The length is up to 70 meters using OM3 MMF and 100 meters using OM4 MMF
Gvdlink Fiber Active Optical Cables (AOC) are certified 100% compliant in all OEM applications. They are pre-configured with an application specific code to meet the requirement set forth by the router and switch OEMs. Axiom compatible AOC cables perform, fit and function identically when compared to “Original” cables. The Active Optical Cables fully comply with the multi-sourcing agreement (MSA) which enables them to work in all MSA compliant platforms.
Features
| HW Compatible | QSFP-100G-AOC10M |
| Connector Type | QSFP28 to QSFP28 |
| Minimum Bend Radius | 7.5mm |
| Cable Length | 10m |
| Receiver Type | PIN |
| Transmitter Type | VSCEL |
| Wavelength | 850nm |
Our QSFP28 100G Active optical cables product series
| Model | Specification |
| QSFP-100G-AOC1M | 100GBASE QSFP Active Optical Cables 1M |
| QSFP-100G-AOC2M | 100GBASE QSFP Active Optical Cables 2M |
| QSFP-100G-AOC3M | 100GBASE QSFP Active Optical Cables 3M |
| QSFP-100G-AOC5M | 100GBASE QSFP Active Optical Cables 5M |
| QSFP-100G-AOC( 7~70m) | 100GBASE QSFP Active Optical Cables |
Application
The QSFP 100G AOC cable can be Used for 100GE optical port connection or stacking between CloudEngine 9800, 8800, 7800, 6800, and 5800 series switches.
Both ends connect to a 100GE optical port.
