QSFP-40G-CU3M 28AWG 40G QSFP+ DAC Cable For Huawei 02310MUH

Price Negotiable
Price: Negotiable
MOQ: 1pcs
Delivery Time: 1-5 working days
Brand: Gvdlink
Product Description

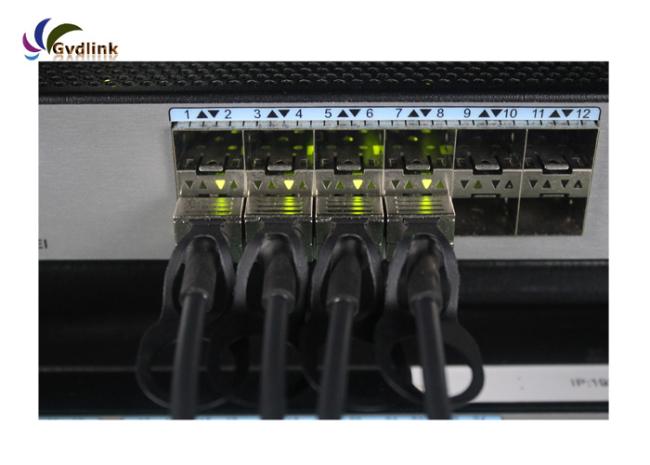

3m QSFP-40G-CU3M 40G QSFP+ DAC Cable for Huawei 02310MUH

Description

The Huawei QSFP-40G-CU3M direct attach copper cable assembly (also known as DAC) is suitable for very short distances and offers a highly cost-effective way to establish a 40 Gigabit link connectivity between devices using QSFP ports. The QSFP+ DAC cable is designed for 40Gb/s high-speed interconnecting networking applications such as high-performance computing (HPC), enterprise networking including top-of-rack switching and network storage markets.



Features (Low Power Version)

  • Lower cost than QSFP+ optical transceiver and active optical cable (AOC)
  • Maximum aggregate data rate: 40 Gb/s (4 x 10Gb/s)
  • Hot-pluggable QSFP+ 38-PIN footprint
  • Single 3.3V power supply
  • Compliant with IEEE 802.3ba 40GBASE-CR4 standard
  • Compliant with QSFP+ MSA SFF-8436
  • Compliant with Infiniband QDR/DDR data rates
  • Maximum 1.5W operation power
  • Operating temperature range: 0 to 70°C
  • RoHS Compliant and Lead-Free

Benefits
• Cost-effective copper solution
• Lowest total system power solution
• Lowest total system EMI solution
• Optimized design for Signal Integrity



​Our HW QSFP copper 40G cables product series

Model Specification Part number
QSFP-40G-CU1M QSFP to 4 SFP+ copper break-out cables 1M 02310MUG
QSFP-40G-CU3M QSFP to 4 SFP+ copper break-out cables 3M 02310MUH
QSFP-40G-CU5M QSFP to 4 SFP+ copper break-out cables 5M 02310MUJ
QSFP-4SFP10G-CU1M QSFP to 4 SFP+ copper break-out cables 7M 02310MUK
QSFP-4SFP10G-CU3M QSFP to 4 SFP+ copper break-out cables 10M 02310MUL
QSFP-4SFP10G-CU5M QSFP to QSFP copper direct-attach cables 1M 02310MUM



Applications

  • 40 Gigabit Ethernet

  • 10 Gigabit Ethernet

  • InfiniBand 4x SDR , DDR , QDR

  • 2 , 4 , 8 , 10 Gigabit

  • SAS , Servers , Hubs , Switches , Routers

  • Fiber Channel Fiber Channel over Ethernet
