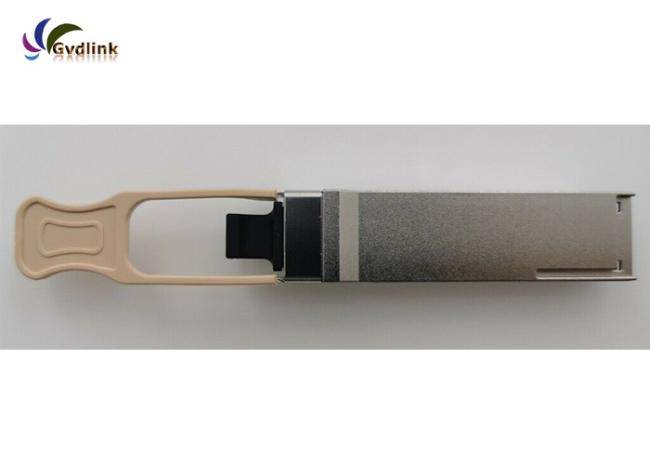

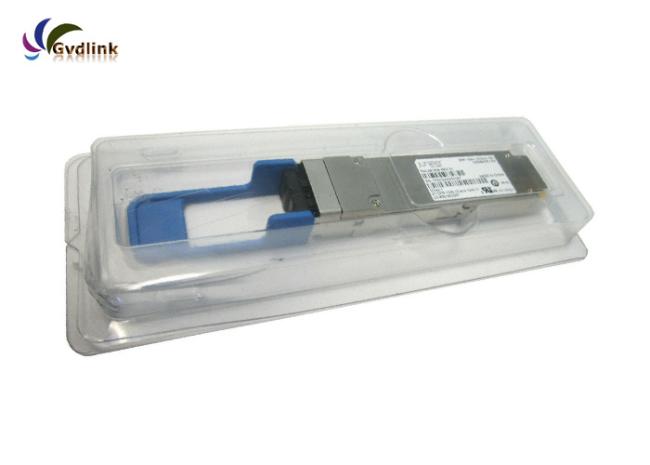

Juniper Networks JNP-QSFP-100G-SR4 Compatible 100GBASE-SR4 QSFP28 850nm 100m DOM MTP/MPO MMF Optical Transceiver Module

The Juniper JNP-QSFP-100G-SR4 Compatible QSFP28 Optical Transceiver Module is designed for use in 100GBASE Ethernet throughput up to 100m over OM4 multimode fiber (MMF) using a wavelength of 850nm via a MTP/MPO-12 connector. This transceiver is compliant with IEEE 802.3bm 100GBASE-SR4 and CAUI-4 standard. Digital diagnostics functions are also available via the I2C interface, as specified by the QSFP28 MSA, to allow access to real-time operating parameters. With these features, this easy to install, hot swappable transceiver is suitable to be used in various applications, such as data centers, high-performance computing networks, enterprise core and distribution layer applications.

Description

• QSFP28 MSA compliant
• Functionally identical to Juniper JNP-QSFP-100G-SR4
• 4 independent full-duplex channels
• Up to 26Gb/s data rate per channel
• Up to 70m on OM3 and 100m on OM4 MMF Multimode Fiber
• Single 3.3V power supply
• Maximum power consumption 3.5W
• Single MPO optical connector
• Built-in digital diagnostic function

Applications

• Fully compatible with almost all Juniper devices

• OTN OTU4 Metro Area Networks

• 100G telecom, data center, high-performance computing network, campus network
