Big Tunnel 100*80cm X Ray Cargo Scanner, X Ray Luggage Screening Equipment SA10080
Big Tunnel 100*80cm X Ray Cargo Scanner, X Ray Luggage Screening Equipment SA10080
X Ray Cargo Scanner Introduction:
SA10080 heavy-duty conveyorized direct transmission X-ray inspection system is designed for screening large objects, hold baggage and cargo for concealed weapons, explosives and contraband.
Multi-energy color allows operators to quickly spot areas of concern in the most thickly packed parcels, bulk loads and baggage. The system's high-capacity conveyor sits less than a foot from the floor for easier, more ergonomic loading.
- 1. Perfect for air cargo screening
- 2. autoSensing assures 100% screening of all items,
3. no matter how thin or low - 4. Ideal for inspecting oversized and out-of-gauge objects
X Ray Cargo Scanner Technical Parameter:
|
Dimension (L×W×H) |
3138.5mm x1295mm x1716.5 mm |
|
G.Weight |
1070Kg |
| Control Board |
AIMB 501G2 |
|
CPU |
G1610 2.6G |
|
Storage space |
2GB 1600MHz DDR3 Innodisk |
|
Computer system |
XP system system |
| X ray Dose per inspection |
<1.5μSv |
| X-ray Leakage |
<0.5 μSv/h (at a distance of 5cm From external housing) |
| Penetration |
30 mm steel guarantee, 32mm steel typical |
| Wire Resolution |
38 AWG guarantee, 40 AWG typical |
| Spatial resolution Level |
Dia1.3mm,Vertical: dia1.6mm |
| Power Consumption |
1.0KW (max), 0.7KW(working) |
| Noise | <58db |
| Anode Voltage | 140 - 160kv(adjustable) |
| Anode power | 0.2-1.2mA |
| Generate angle | 80 degree upward |
| Generate direct | From bottom to top |
| Cooling / Duty Cycle | Oil Cooling /100% |
X Ray Cargo Scanner Operating Environment:
Operating temperature: 5℃ - 40℃
Operating Humidity: 10% - 95% (non-condensing)
Storage Temperature: -20℃ to 60℃
Storage Humidity: 10% - 95% (non-condensing)
Operation Power: 220VAC (±10%) 50±3Hz (Optional: 100VAC,110VAC,120VAC,200VAC)
Power Consumption: 1.0KW (max), 0.7KW (working)
About Securina:
Securina is professional manufacturer, factory exportor, Chinese supplier for metal detectors and security screening equipments.
The complete range of security inspection system are walk through metal detector, x-ray baggage scanner, handheld metal detector, UVSS, Food metal detector and tyre killer, road blocker, hydraulic bollards.etc
Securina system already supplied to South Africa, Zimbabwe, Nigeria, Cameroon, Sierra Leone, Liberia, Ghana, Malawi, Seychelles, Gambia, Kenya, Ethiopia, Eritrea, Somalia, Lesotho, Swaziland, Sudan, Uganda, Tanzania, Zambia, Namibia, Botswana, St. Helkina.etc African markets.
Also cooperated with customer from Russia, Ukraine, Belarus, Estonia, Latvia, Lithuania, Moldavia, Georgia, Armenia, Azerbaijan, Kazakhstan, Uzbekistan, Kyrgyzstan, Turkmenistan, Tajikistan.etc

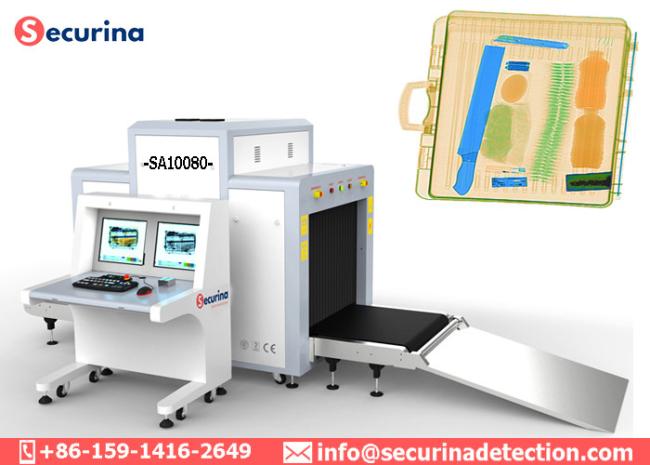

X Ray Cargo Scanner Product Pictures:
