Carbon Steel Frame Hydraulic Spike Roadblocker Traffic Road Blocker Barrier Machine

Price Negotiable
Price: USD500-50000/set
MOQ: 1 set
Delivery Time: 5-10 working days after payment confirmation
Brand: Securina
Product Description

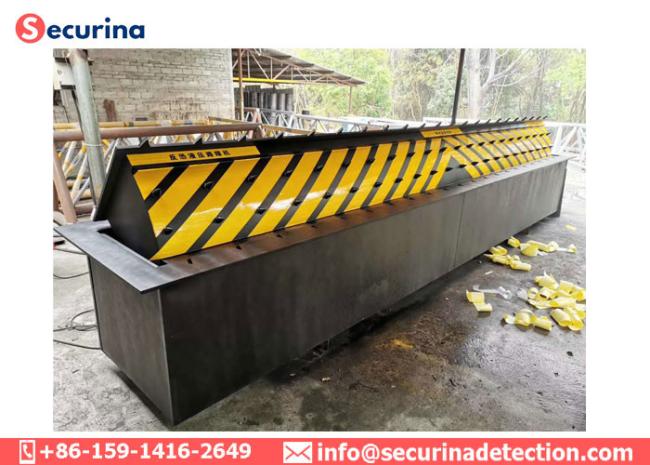

Carbon Steel Frame Hydraulic Spike Roadblocker Traffic Road Blocker Barrier Machine






Securina provide high security level products of Hydraulic Automatic Bollards, Road Blockers and Tyre Killers, also supply Semiautomatic / Fixed / Removable bollards for different security level selected.



Securina products are widely used in many locations across the Globe, such as Embassies, Airports, School locations, Government locations, Stadiums, Rail Stations, Banks, Energy Plants locations, Commercial sites, Private Residences and more.



SA5000 Hydraulic Roadblocker Features:



1. Durable, Smooth operation, Low Noise, Fast speed, long life-time

2.Micro-control technology makes system stable and reliable. Easy integrated into other systems.

3. Compatible with road barrier,turnstiles and other access system control to achieve automatic control.

4.Advanced and mature Hydraulic pressure technologies,make the system high reliability, security and stability.

5. Manual settings meet anti-fire management' requirements
In case of a power failure or in the event of a system broken-down, if the roadblock is in a raised state, it can move the raised roadblock cover to a horizontal position by manual operation; if the roadblock is in the off state, it can raise the roadway cover by manual operation to prevent the vehicle from entering.

6. Automatic hydraulic system device
Remote control device:Remote control system realize wireless control up & down within 50 meters range.
Manual button device: by the manual switch button in the control box



Specification of SA5000:



Control system : electric-hydraulic
Material carbon steel
Color Yellow in black (customized)
LED warning light optional, support lettering
Panel thickness 12/16/20/25mm(Optional)
Bearing capacity under100/120 tons container trucks
Rising time 0.5~3 seconds (adjustable)
Falling time 0.5~3 seconds (adjustable)
Working temperature -40º C~ +70º C/Humidity 5% to 95%, non-condensing
Weatherproofing level IP67
Power supply three-phase 380VAC(optional 220VAC)
Net weight 1.8 ~2.8 tons (optional)
Hydraulic station
Motor 3HP*4P, three-phase 380VAC (industrial grade)
Oil pump gear pump (industrial grade) with mounting platform
Raising & falling electromagnetic valve industrial grade
Heavy hydraulic oil vat HOB63-200CA +I stroke 200, heavy industrial grade.
Double-acting double-oil manual pump 2.3ml/ time (industrial grade)
Oil tank capacity 60 liter. 46# hydraulic oil(buy in local)
Hydraulic pipe PT international standard interface, 1/2 double steel wire,high-pressure pipe
Spare parts oil pipe & PVC-U drain pipe(Diameter: 110 mm), length based on each case on site.
