304 Stainless Steel Hydraulic Automatic Parking Rising Bollards Car Park Security Bollards
304 Stainless Steel Hydraulic Automatic Parking Rising Bollards Car Park Security Bollards

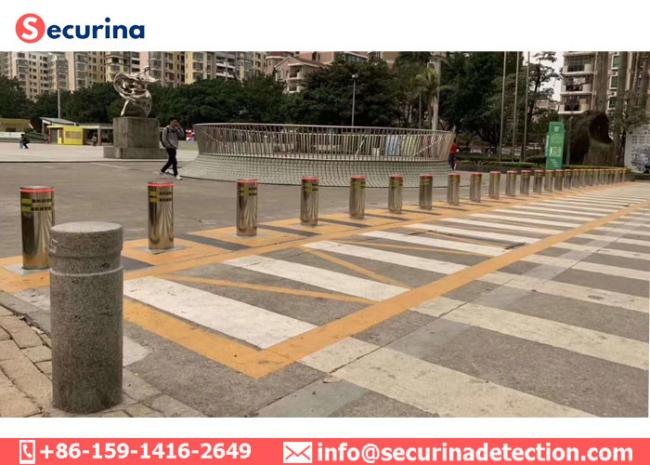

SA6000 Automatic rising security bollards are widely used in many occasions such as urban traffic, the gates and surroundings of military and important national institutions, pedestrian streets, highway toll stations, airports, schools, parking lots, etc.
By restricting the passing vehicles, the traffic order and the safety of main facilities and places are effectively guaranteed. The automatic lifting bollard is divided into three types: automatic lifting type, semi-automatic lifting type and fixed type; the automatic lifting type is divided into hydraulic lifting type and automatic lifting type. It is mainly designed and developed for the sensitive area to prevent non-permitted vehicles from forcibly breaking in. The automatic lifting bollard has high practicality, reliability and safety. It is composed of bottom base, lifting and blocking barricade bollard, power transmission device, control and other parts.
According to the different needs of different customers, it has a variety of configuration methods for users to choose and can meet the functional requirements of various customers.
SA6000 Parking Block Automatic Retractable Bollards Specifications:
| 1 | Power | AC220C/380V, 50/60Hz, Electrical Hydraulic System |
| 2 | Operating Temperature |
-35°C~75°C Waterproof, Dustproof |
| 3 | Up & down time | 3~5 seconds (can be adjustable) |
| 4 | Parts of Bollards |
1. Bollards Body 2. Control Box |
| 5 | Dia. of bollards | 219mm ±2mm |
| 6 | Communication Distance | ≤1200M |
| 7 | Bollard Thickness | 6mm (can be customized with additional cost) |
| 8 |
Communication Connection |
RS485 |
| 9 | Material | No.304 steel |
| 10 | Color | Various color optional |
| 11 | Bollard Host Size | (Upside Cover Thickness: 20mm) 430x430x110mm |
| 12 | Bollard rising height | 600mm ( can be customized with additional cost) |
| 13 | Bollard outer | Antirust painted |
| 14 | Bollard warning mark | One 5mm highlight reflective band |
| 15 | Vibration Reduction | Cushion the shock, bollard body not shake |
| 16 | Balance guide rail | 4pcs Guide Rails with No.304 Steel |
| 17 | Unit Bollard Weight | 140kgs |
| 18 | IP Weather-proof | IP68 |
| 19 | Anti-collision Level | K12 |
| 20 | Max Passing Pressure | 100 ton container truck |
| 21 | Storage Temperature | -10℃~ 65℃ |
| 22 | Motor Power Consumption | 350W |
| 23 | Control way | Remote control/keyboard |
| 24 | Control box size | 500(L)*400(W)*200(H)mm |
| 25 | Control box installation | Indoor installed, can be wall-mounted |
| 26 | Control chip | PLC Control board |
| 27 | Applications | School, Hotel, Shopping mall, Park, Government building, Jail, Subway Station, port, Tourism Sports, Exhibition, Residence Area, etc |
RFQ:
Are you manufacturer?
Yes, we are professsional manufacturer of security threats detection system in south of China.
Stable quality and foremost service always be the key that we focus on.
How many days we can get the machine after payment?
Normally, with stock only need 3-5 days for leading time.
Without stock, need 10-15 days to manage the production.
Delivery by sea, air for your choices
How about the warranty and services?
Provide one year warranty and lifetime technic support.
Accept to send our engineer to your country for training in additional cost.
Free training one-on-one in our factory for free.
