3.0kgs TNT Exploding Disposal Equipment Containment Ball Tanks For EOD Team
3.0kgs TNT Exploding Disposal Equipment Containment Ball Tanks For EOD Team
Suspect parcel containment vessels description:
Total containment vessels(TCVs) are fully enclosed containers designed to safely secure, transport, and test explosive or chemical devices. TCVs are used by emergency responders as mitigation solutions to help protect people, property, and the environment from primary and secondary fragmentation and gases that generally result from the detonation of an explosive device. Once the suspect object is contained in the chamber, the surrounding area is protected from the blast effects of the explosive device, up to the explosive rating of the chamber.
Bomb Suppression Tank Applications:
Containment vessels have many applications in law enforcement, security, and transportation for safely securing, transporting, and testing explosive or chemical devices. Many governments and commercial office buildings, including embassies, post offices, nuclear power plants, and transportation facilities are prime targets for bomb threats. The TCV is designed to contain the bomb while being transported to an area where it can be rendered safe. Terrorist activities continue to escalate worldwide and TCVs are a great benefit to meet bomb security needs.
Bomb Disposal Container Specifications:
| Material: | Carbon steel, Thickness 36mm; |
| Composed: | by tank body, tank lid, trawl, mechanical facility for operating lid, foundation, Jacking parts, Venting components, Wheels and etc; |
| Operation way: | Manually open/close the cover via external devices; the month of the ball tank is vertically upward; |
| Cover opened | from inside; |
| Bottom base size: | 800mm * 900mm * 90mm ( Wide*Deep*Height) |
| Complete device size: | 900mm * 980mm * 880mm ( Wide*Deep*Height, when cover open) |
| Inner size: | 750mm * 650mm ( Wide*Deep, when cover closed) |
| Inner diameter : | 750mm |
| Outer diameter : | 880mm |
| Mouth diameter: | 550mm |
| Cover diameter : | 590mm |
| Max open diameter: | 330mm |
| Venting holes Diameter: | 5mm (on the body of tank) |
| Venting components | is made of Seamless steel pipe with a diameter of 25mm, thickness of 2mm; one side of the steel pipe is welded with the venting holes, the other side is welded to the bottom of the tank; |
| Bottom of tank | is made of 12mm thick steel, its edges are made of 3mm steel, and there are 4 wheels at the bottom; |
| Net weight of the ball tank | 660kgs |

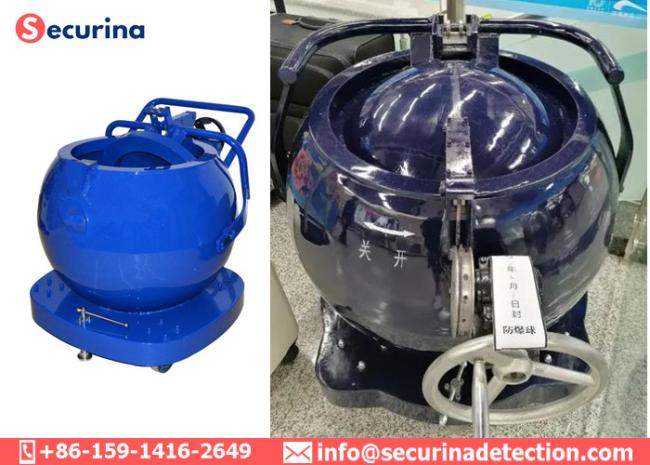

Explosive Disposal Equipment Picture:
