3.0kgs TNT Total Containment Vessel Bomb Disposal Device For Public Safety
Price:
$48, 000-$50, 000/pc
MOQ:
1 pc
Delivery Time:
5-8 working days upon payment confirmation
Brand:
Securina
Product Description
3.0kgs TNT Bomb Squad Containment Vessels for Public Safety Bomb Disposal
The mobile explosive squad containment vessels with wheels can bear high explosion and containment capacity. The total containment vessel completely contains and protects against the effects of an explosion. Full protection against 3.0kgs Explosive blast and fragmentation with detonation capability.
Total Containment Vessels FBQ-3.0 Technical specification:
| Material: | Carbon steel, Thickness 35mm; |
| Composed: | by tank body, tank lid, trawl, mechanical facility for operate lid, foundation, Jacking parts, Venting components,Wheels and etc; |
| Operation way: | Manually open/close the cover via extenal devices; the month of ball tank is vertically upward; |
| Cover opened | from inside; |
| Bottom base size: | 920mm * 830mm * 830mm ( Wide*Deep*Height) |
| Outer size: | 6920mm * 1100mm * 950mm ( Wide*Deep*Height, when cover open) |
| Inner size: | 920mm * 1100mm * 910mm ( Wide*Deep*Height, when cover closed) |
| Inner diameter : | 750mm |
| Outer diameter : | 820mm |
| Month diameter: | 530mm |
| Cover diameter : | 590mm |
| Max open diameter: | 320mm |
| Venting holes Diameter: | 5mm (on body of tank) |
| Venting components | is made of Seamless steel pipe with diameter 25mm, thickness 2mm; one side of the steel pipe is welding with the venting holes, the other side is welding to the bottom of tank; |
| Bottom of tank | is made of 12mm think steel, its edgeis made of 3mm steel, and there are 4 wheels at the bottom; |
| Neight weight of the ball tank | 680kgs |
Bomb Containment Vessels FBQ-3.0 Tested by: China Ministry of Public Security Special Police Equipment Quality Supervision and Inspection Center
Explosive Containment Vessels FBQ-3.0 Tested result: Put 3.0kg net TNT (density 1.55g/cm3 -1.6g/cm3), in the tank on the net, ignite it with No. 8, after explosion no splash objects, no penetrated hole and crack, no burn inside, transmission mechanism normal.
Application: Police, army, courtyard, airport, train station, seaport, subway, shopping mall, and all crowded important locations.
The temporary storage of suspicious explosives.
To prevent the bomb from an explosion in public.
Gas-tight with total containment of chemical and biological agents as well as the effects from an explosion and toxic materials.
EOD field and bomb squad

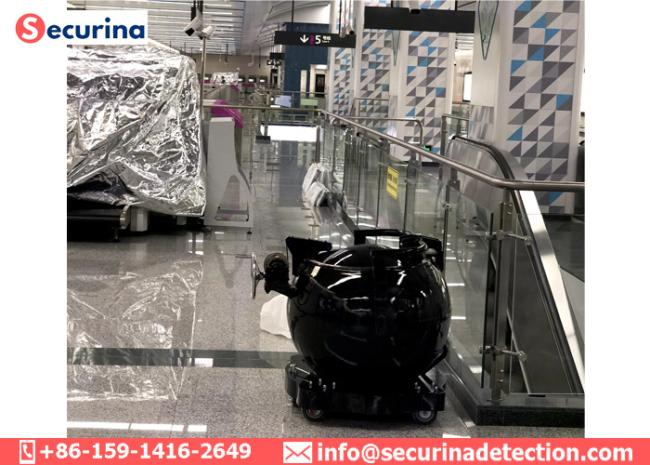

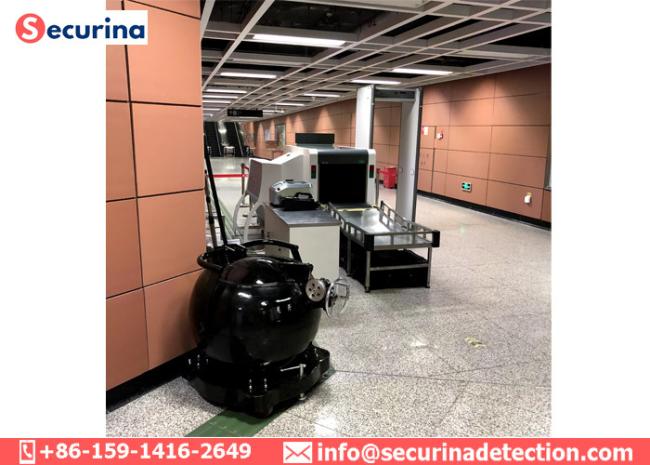

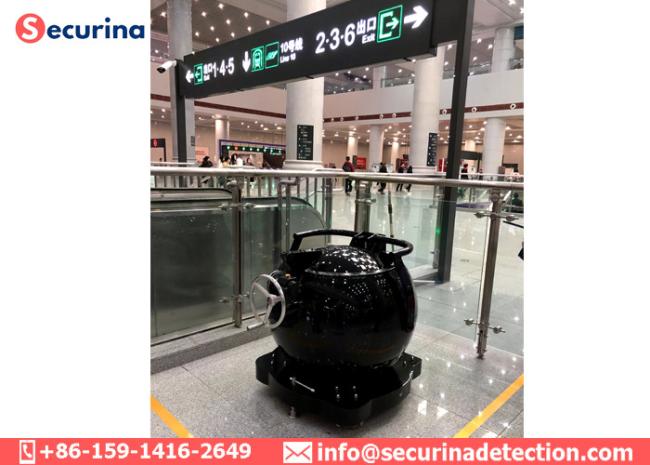

Bomb Squad Containment Vessels FBQ-3.0 product at site:
