Flexible HD Typs Robots Harmonic Drive Gear Reducer Bearings HDB18.8254mm

Price Negotiable

Price: 1-100

MOQ: 1

Delivery Time: 7-35 days

Brand: MONTON

Product Description

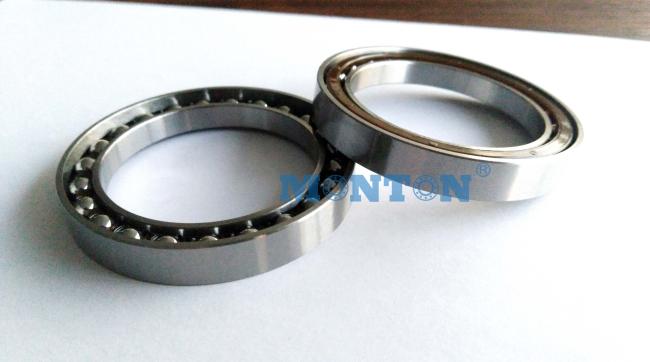

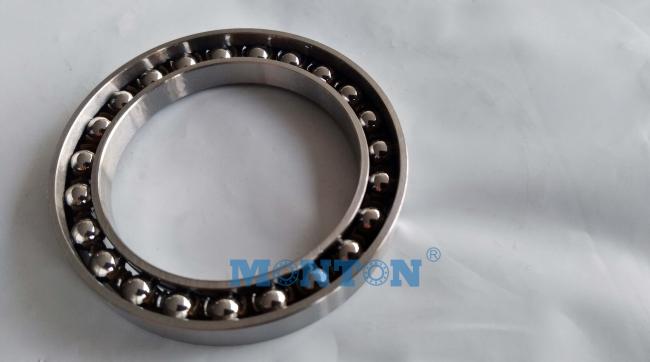

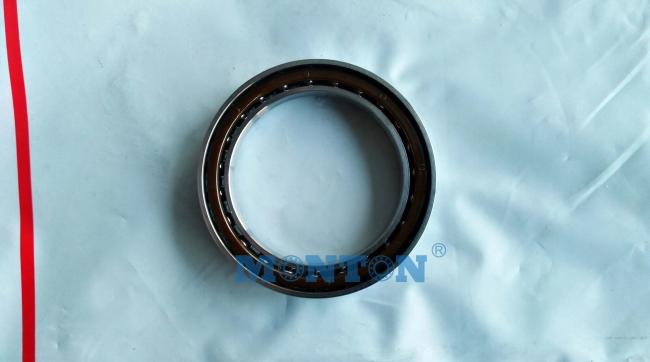

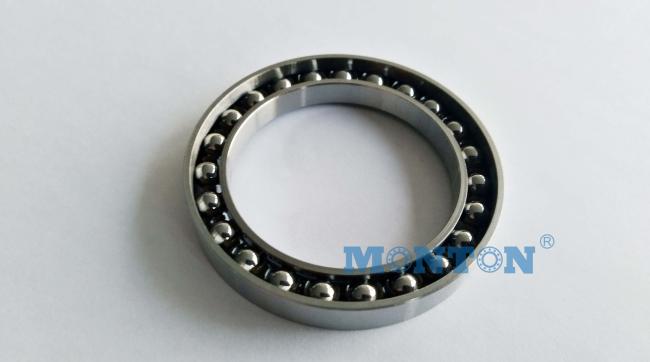

flexible ball bearings HD typs robots harmonic drive gear reducer bearings

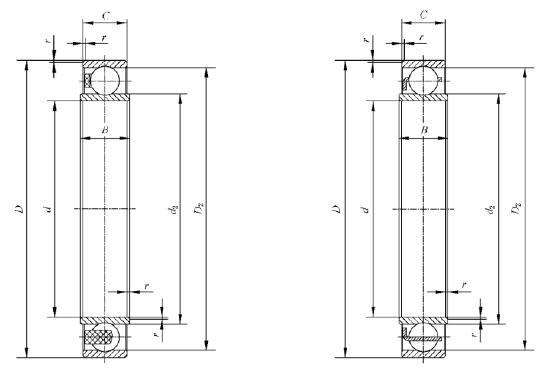

Bearings	d	D	B	C	rsmin
HDB18.8/25/4	18.8	25	4	4	0.15
HDB22/30/5	22	30	5	5	0.15
HDB22.79/28.8/3.8/4	22.79	28.8	3.8	4	0.15
HDB24/32/5	24	32	5	5	0.15
HDB25.2/34/6.3/6.05	25.2	34	6.3	6.05	0.15
HDB27/37/6	27	37	6	6	0.2
HDB30/40/6	30	40	6	6	0.2
HDB34/47/8	34	47	8	8	0.2
HDB35.8/48.2/8	35.8	48.2	8	8	0.2
HDB37/50/8	37	50	8	8	0.2
HDB42/58/10	42	58	10	10	0.2
HDB45/60/9	45	60	9	9	0.3
HDB45.1/61.3/6.35/9	45.1	61.3	6.35	9	0.3
HDB48/63/9.5	48	63	9.5	9.5	0.3
HDB52/72/12	52	72	12	12	0.3
HDB59/79.8/8.6/11.8	59	79.8	8.6	11.8	0.3
HDB60/80/12	60	80	12	12	0.3
HDB65/90/16	65	90	16	16	0.3
HDB72/95/15	71	95	15	15	0.3
HDB71.2/98.2/10.2/14.4	71.2	98.2	10.2	14.4	0.3
HDB75/100/15	75	100	15	15	0.3
HDB80/110/16	80	110	16	16	0.3
HDB83/115/20	83	115	20	20	0.3
HDB90/120/18	90	120	18	18	0.5
HDB94/125/18.5	94	125	18.5	18.5	0.5
HDB100/140/25	100	140	25	25	0.6
HDB104/142/21	104	142	21	21	0.6
HDB120/160/24	120	160	24	24	0.8
HDB125/175/32	125	175	32	32	0.8
HDB150/200/30	150	200	30	30	1.0
HDB160/220/33	160	220	33	33	1.0
HDB180/240/35	180	240	35	35	1.0
HDB190/250/36	190	250	36	36	1.0
HDB220/300/45	220	300	45	45	1.5
HDB19.444/26.671/4.8/4.6	19.444	26.671	4.8	4.6	0.15
HDB24.945/33.671/6.35/6.1	24.945	33.671	6.35	6.1	0.15
HDB29.671/41.671/6.68/6.16	29.671	41.671	6.68	6.16	0.2
HDB31.817/46.671/4.8/6	31.817	46.671	4.8	6	0.2
HDB35.58/49.075/8.1/7.2	35.58	49.075	8.1	7.2	0.2
HDB35.58/49.281/8.1/7.2	35.58	49.281	8.1	7.2	0.2
HDB39.674/53.169/8.7/7.2	39.674	53.169	8.7	7.2	0.2
HDB47.671/61.671/6.359.015	47.671	61.671	6.35	9.015	0.3
HDB58.871/79.671/8.64/11.8	58.871	79.671	8.64	11.8	0.3
HDB58.933/79.56/8.64	58.933	79.56	8.64	8.64	0.3
HDB72.62/99.671/10.3/14.475	72.62	99.671	10.3	14.475	0.3
HDB81.937/112.671/11.4/16.3	81.937	112.671	11.4	16.3	0.3

Robot bearing/harmonic drive bearing is a special kind which easily deforms in a reversible way. It has a very thin outer ring which varies from round shape to oval interatively during its working time. easily double sealed bearing designed primarily for application of radial load—deep ball grooves also permit application of thrust load in either direction, often used in conjunction with another bearing.
