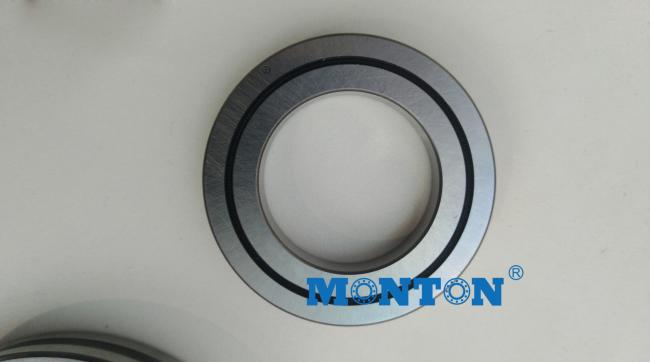

RU42UUCCOP5 Cross Roller Bearings For Harmonic Drive Robots
RU42UUCCOP5 Cross Roller Bearings For Harmonic Drive Robots
RU42UUCCOP5
| Diameter (mm) | Identification number | Main dimensions | Shoulder height | Basic load rating(radial) | Weight | |||||||
| ID | OD | PCD | B | Oil hole | rmin | |||||||
| d | D | dp | β | d1 | ds | Dh | C/kN | Co/kN | kg | |||
| 20 | RU42 | 20 | 70 | 41.5 | 12 | 3.1 | 0.6 | 37 | 47 | 7.35 | 8.35 | 0.29 |
Cross roller bearing type
RU -type ( inner and outer one size )
RU series models have been carried out since the mounting holes of the processing, you do not need a fixed flange and the housing . Further, since the use of external integrated with the seat ring structure mounted almost no effect on performance , it is possible to obtain stable rotation and torque accuracy . Can be used to rotate the outer ring and the inner ring .
RU series:
RU42 RU66 RU85 RU124 RU148 RU178 RU124X RU148X RU178X RU124G RU148G RU178G RU228 RU297 RU445 RU228X RU297X RU445X RU228G RU297G RU445G
