CRBH series crossed cylindrical roller bearing

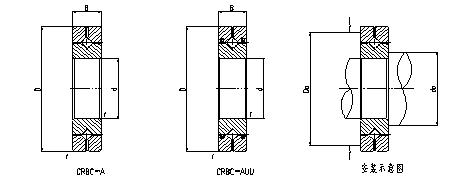

| Shaft diameter | Identification | Main dimensions | Mounting dimensions (mm) | Basic dynamic load rating | Basic static load rating | weight | |||||
| (mm) | |||||||||||
| inner ring | outer diameter | width | Chamfer | da | Da | C | Co | (Kg) | |||
| r | (N) | (N) | |||||||||
| (mm) | d | D | B | (min) | |||||||
| 20 | CRBH 208 A | CRBH 208 AUU | 20 | 36 | 8 | 0.3 | 24 | 31 | 2910 | 2430 | 0.04 |
| 25 | CRBH 258 A | CRBH 258 AUU | 25 | 41 | 8 | 0.3 | 29 | 36 | 3120 | 2810 | 0.05 |
| 30 | CRBH 3010 A | CRBH 3010 AUU | 30 | 55 | 10 | 0.3 | 36.5 | 48.5 | 7600 | 8370 | 0.12 |
| 35 | CRBH 3510 A | CRBH 3510 AUU | 35 | 60 | 10 | 0.3 | 41.5 | 53.5 | 7900 | 9130 | 0.13 |
| 40 | CRBH 4010 A | CRBH 4010 AUU | 40 | 65 | 10 | 0.3 | 46.5 | 58.5 | 8610 | 10600 | 0.15 |
| 45 | CRBH 4510 A | CRBH 4510 AUU | 45 | 70 | 10 | 0.3 | 51.5 | 63.5 | 8860 | 11300 | 0.16 |
| 50 | CRBH 5013 A | CRBH 5013 A UU | 50 | 80 | 13 | 0.6 | 56 | 74 | 17.3 | 20.9 | 0.29 |
| 60 | CRBH 6013 A | CRBH 6013 A UU | 60 | 90 | 13 | 0.6 | 66 | 84 | 18.8 | 24.3 | 0.33 |
| 70 | CRBH 7013 A | CRBH 7013 A UU | 70 | 100 | 13 | 0.6 | 76 | 94 | 20.1 | 27.7 | 0.38 |
| 80 | CRBH 8016 A | CRBH 8016 A UU | 80 | 120 | 16 | 0.6 | 88 | 112 | 32.1 | 43.4 | 0.74 |
| 90 | CRBH 9016 A | CRBH 9016 A UU | 90 | 130 | 16 | 0.6 | 98 | 122 | 33.1 | 46.8 | 0.81 |
| 100 | CRBH 10020 A | CRBH 10020 A UU | 100 | 150 | 20 | 0.6 | 110 | 140 | 50.9 | 72.2 | 1.45 |
| 110 | CRBH 11020 A | CRBH 11020 A UU | 110 | 160 | 20 | 0.6 | 120 | 150 | 52.4 | 77.4 | 1.56 |
| 120 | CRBH 12025 A | CRBH 12025 A UU | 120 | 180 | 25 | 1 | 132 | 168 | 73.4 | 108 | 2.62 |
| 130 | CRBH 13025 A | CRBH 13025 A UU | 130 | 190 | 25 | 1 | 142 | 178 | 75.9 | 115 | 2.82 |
| 140 | CRBH 14025 A | CRBH 14025 A UU | 140 | 200 | 25 | 1 | 152 | 188 | 81.9 | 130 | 2.96 |
| 150 | CRBH 15025 A | CRBH 15025 A UU | 150 | 210 | 25 | 1 | 162 | 198 | 84.3 | 138 | 3.16 |
| 200 | CRBH 20025 A | CRBH 20025 A UU | 200 | 260 | 25 | 1 | 212 | 248 | 92.3 | 169 | 4 |
| 250 | CRBH 25025 A | CRBH 25025 A UU | 250 | 310 | 25 | 1.5 | 262 | 298 | 102 | 207 | 4.97 |
CRBH crossed roller bearing series(Integrated Inner/Outer Ring type), this model is a compact type of model RU with extremely thin outer and inner rings without mounting holes are provided, the model require a presser flange or housing. In addition, because it has an integrated inner/outer ring structure and is equipped with washers, its performance is minimally affected by the mounting procedure, ensuring stable rotation accuracy and torque. This model can be used for both inner-ring rotation and outer-ring rotation and the requirement of miniaturized dimension.
Product description:

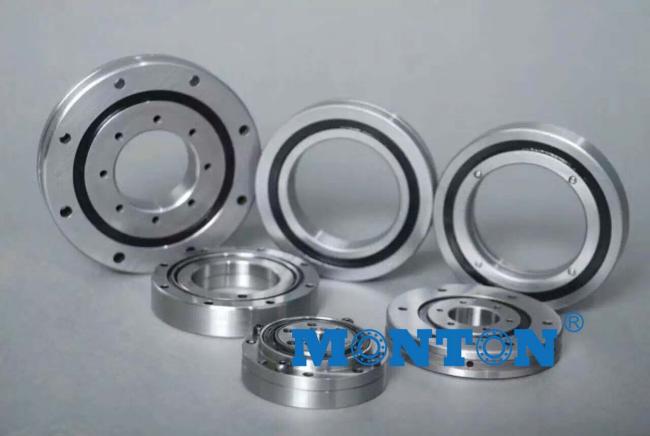

Crossed roller bearings are lightweight, compact bearings with thinnest possible inner and outer rings with high rigidity, because of its vertical arrangement of cylindrical rollers with a 90°V groove through the separate spacers in the deep groove rolling surface. This special design allows just one bearing to carry loads in all directions including radial, axial and moment loads.
CRBH standard type is with an integrated Inner/Outer Ring structure;can be used for both inner-ring rotation and outer-ring rotation.
Series Model No.:
CRBH5013A,CRBH6013A,CRBH7013A,CRBH8016A,CRBH9016A,CRBH10020A,
CRBH11020A,CRBH12025A,CRBH13025A,CRBH14025A,CRBH15025A,
CRBH20025A,CRBH25025A
Application:
•Industrial Robotic arm,Reducer drive
•precision Turntable,NC rotary table
•Rotation part of Machine tools
•Inspection instrument,Medical equipment
•Aviation equipment,Military radar etc
