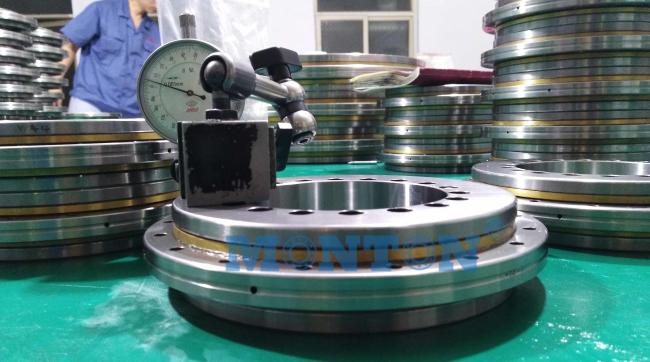

YRTS200 Yrts High Speed Turntable Bearings Use For Rotary Table
| YRTS rotary table bearing | ||||||||||||||
| bearing type | boundary dimensions | fixing holes | ||||||||||||
| d | D | T | H | C | d1 | dn | dm | inner ring | outer ring | |||||
| unit: mm | d0 | ds | TS | quantity | dL | quantity | ||||||||
| mm | mm | |||||||||||||
| YRTS200 | 200 | 300 | 45 | 30 | 15 | 274 | 215 | 285 | 7 | 11 | 6.2 | 46 | 7 | 45 |
| bearing type | Number of retaining screws | Extraction thread hole | Number of pitches X angle of pitches | Screw tightening torque | Basic load rating | Limiting speed | weight | ||||
| axial | radial | ||||||||||
| dynamic load | static load | dynamic load | static load | ||||||||
| MA2) | Ｃａ | Coa | Cr | Cor | grease | ||||||
| G | quantity | qty×t | Ｎｍ | KN | r/min | Kg | |||||
| quantity | |||||||||||
| YRTS200 | 2 | M8 | 3 | 48×7.5° | 14 | 155 | 840 | 94 | 226 | 1160 | 9.7 |
YRTS High speed turntable BearingsFeatures:YRTS turntable bearing is that YRT bearings radial rollers adopt nylon retainer. YRTM turntable bearing is YRT combination bearing installed with steel encoder,Website:http://www.bearinglbr.com, achieving real-time monitor and adjustment of two directions cylindrical roller combination bearings rotation accuracy, to ensure high-precision operation of the machine.Applications:Used in construction crane, high-precision CNC turntable, dividing head, aerospace, other high-precision field in measurement and testing.ModelNameFeaturesYRTSHigh speed turntable BearingsHaving features of high speed compared with YRT type.
